Features:
200W50AH Solar Panel
Rated power :200W
Solar panel parameters
Waterproof: IP65
Open circuit voltage: 24V
Peak voltage: 19.8V
Peak current: 4.2A
Battery efficiency: ≧22.2%
Rated operating temperature: 48±2°C
T Test temperature: 25°C
Class A monocrystalline silicon cell

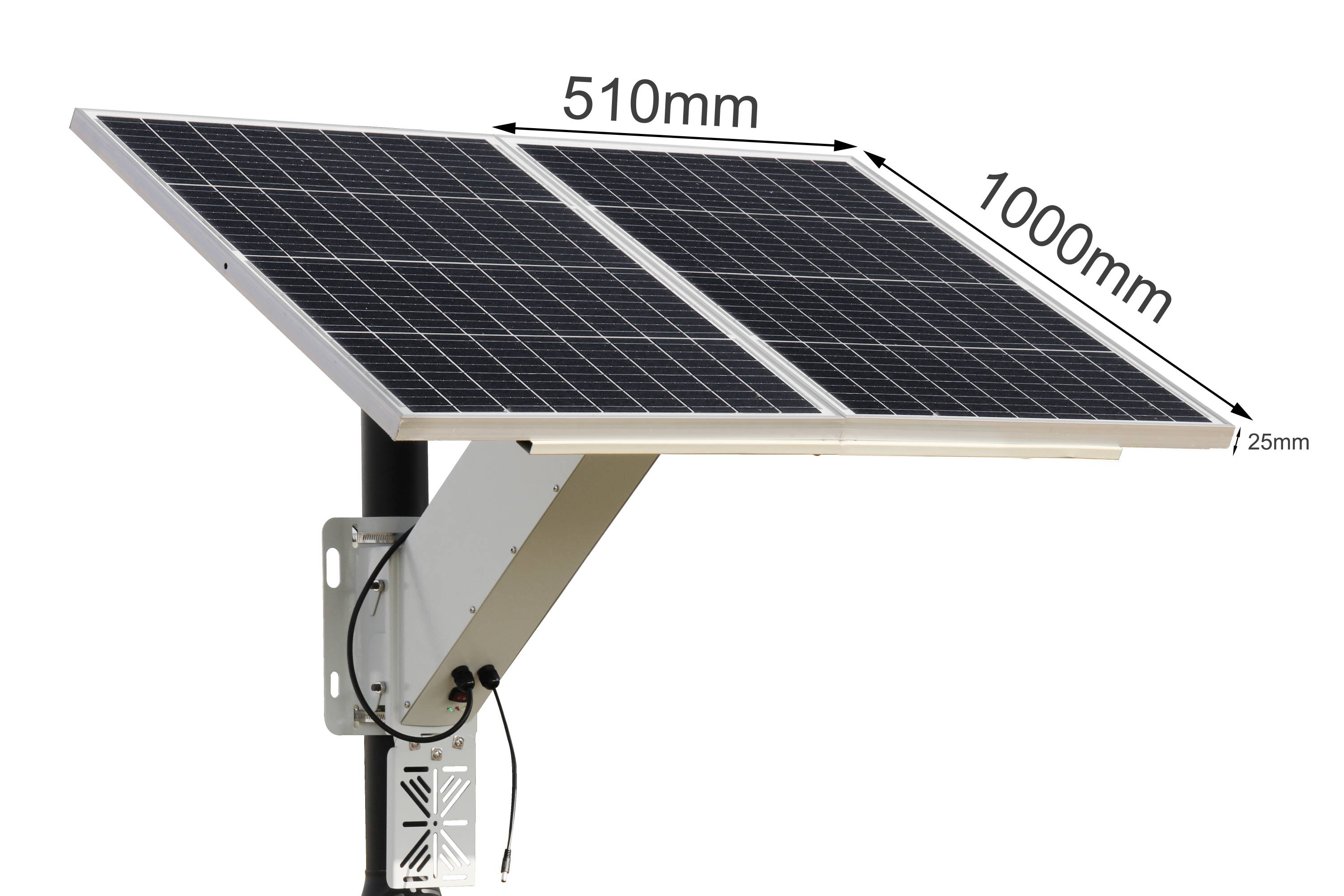

Size: 1000mm × 510mm × 25mm *2 pieces
Weight: about 38kg
The front is made of special glass
Product advantages:
· Overall design, Easy to install
· Solar panel and battery integration, no need for separate wiring of the power box
· Unified equipment installation on the bracket without separate fixation
· Solar panel, controller, battery, and equipment fixing plate are integrated into one, making it a unique solar power system on the market
· Dual-panel design of the solar panel reduce fragility and damage during transportation and save cost for shipment
New cylinder 12V/40AH lithium iron phosphate battery.
Output power: DC12V 5A DC connector: 5.5*2.1mm
Advantages of the controller:
- Support Tuya APP display power usage and charging/discharging status on the phone
- Remote control of power switch
- Multiple connection methods including APP, 4G, WiFi, and 485 interface to achieve IoT interconnectivity
- Optional output power of 12V/24V/48V
Solar panel: Monocrystalline silicon, charging efficiency 4-6 hours full battery
It can supply power for 10-15W products for about 20 days on rainy days
It can be used for 6-8 inch 4G camera monitoring, outdoor industrial CCTV, outdoor audio, outdoor speakers, sensors, environmental water testing and other 12V/24v/48v voltage products
Battery type:
lithium iron phosphate battery
Boost inverter controller
*Support Realtime remote monitor Status of system
MPPT controller:
Boost conversion efficiency: > 85%
Rated output: 12V/20A, 24V/10A,48V/5A.
Output status indicator: 12V/20A, 24V/10A, 48V/5A. Normal voltage output: LED steady on
Over-discharge protection activation: LED off
Discharge protection function:
Overdischarge protection starting voltage ≤11.2V
Overdischarge protection recovery voltage ≥12V
Overcharge protection starting voltage ≥14.4V
Overcharge protection recovery voltage ≤14V
Solar photovoltaic panel charging: 18V output
*Option:
Support Tuya APP/ 4G/WiFi /485
Output power: 24V/48V Option
For detail, pls check with sales people
