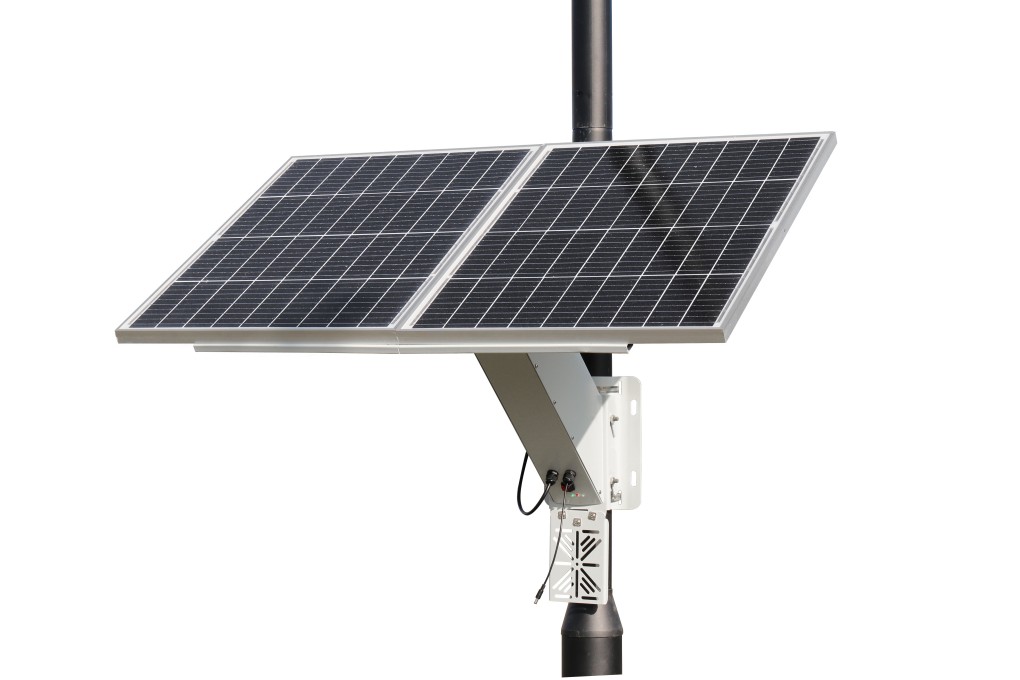

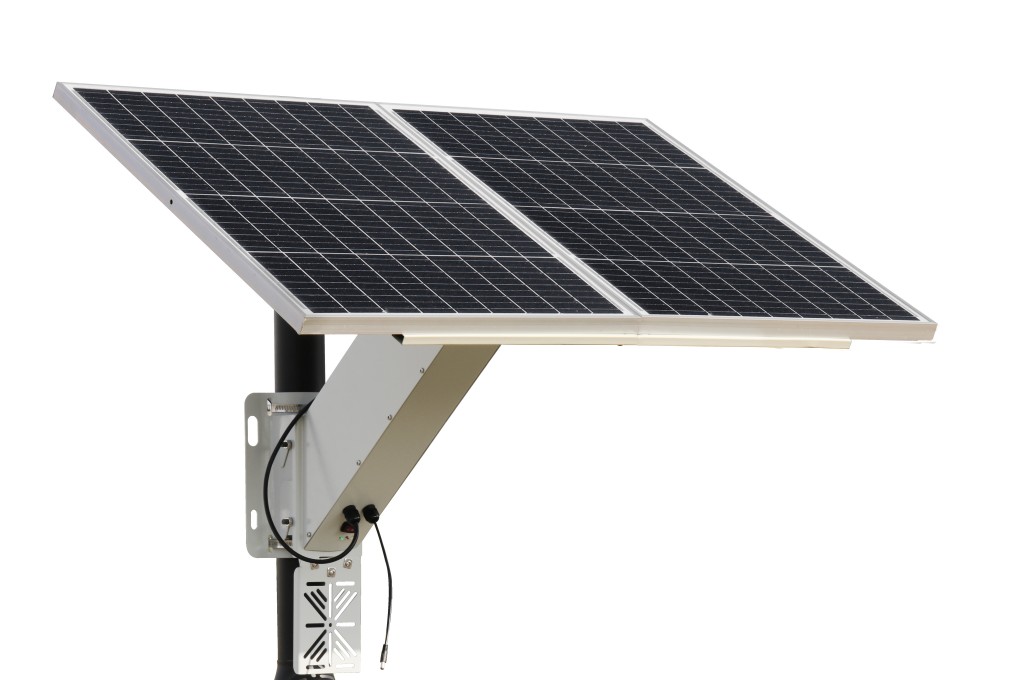

Solar E -T160W40AH-Solar Energy System

Features:
160W40AH Solar Panel
Rated power :160W
Solar panel parameters
Waterproof: IP65
Open circuit voltage: 24V
Peak voltage: 19.8V
Peak current: 4.2A
Battery efficiency: ≧22.2%
Rated operating temperature: 48±2°C
T Test temperature: 25°C

Class A monocrystalline silicon cell

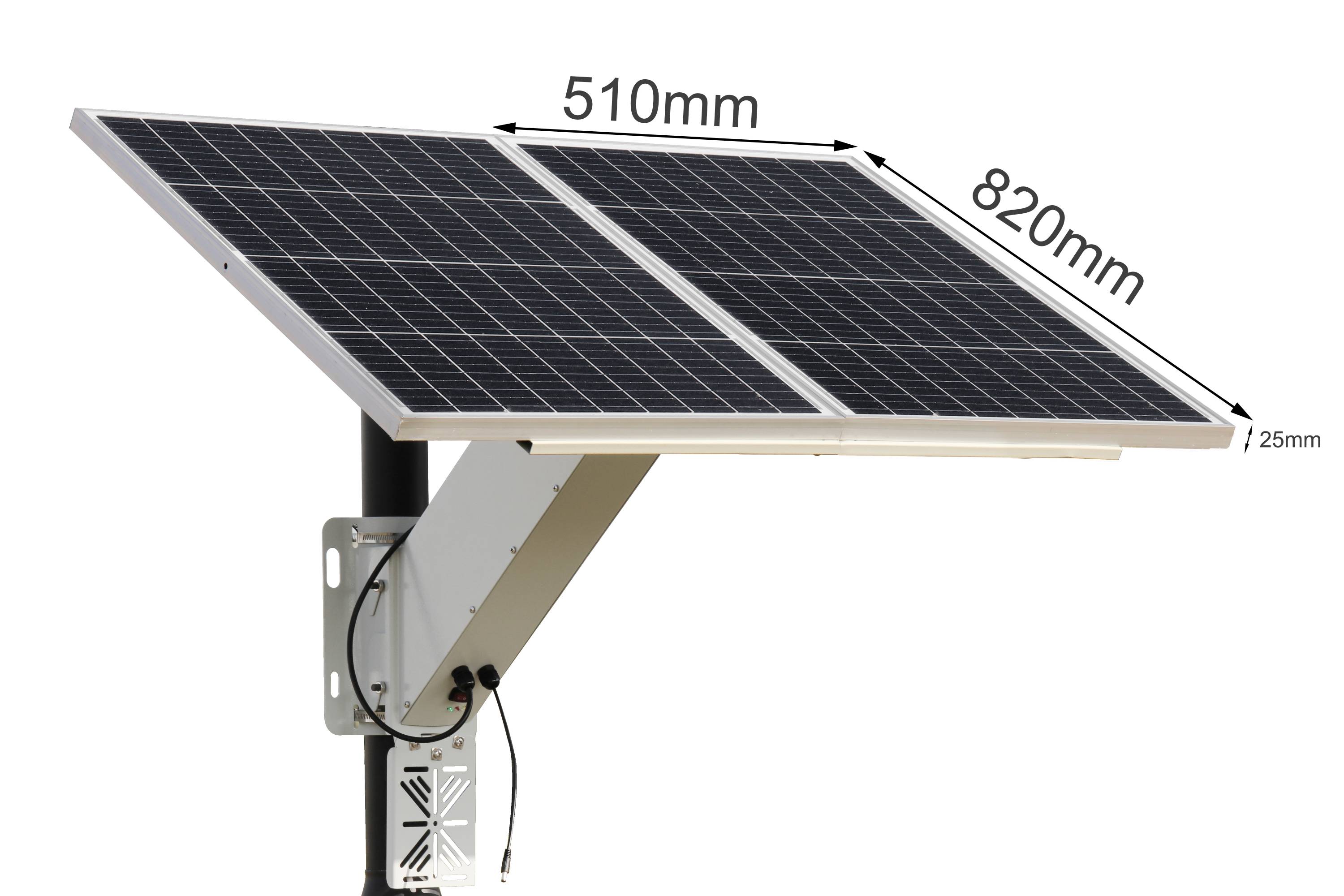

Size: 820 mm × 510 mm ×25 mm *2 pieces
Weight: about 31kg
The front is made of special glass

sales@veacam.com

Details
Specification
Drawing
Enquiry
Recommend

Product advantages:

· Overall design, Easy to install
· Solar panel and battery integration, no need for separate wiring of the power box
· Unified equipment installation on the bracket without separate fixation
· Solar panel, controller, battery, and equipment fixing plate are integrated into one, making it a unique solar power system on the market
· Dual-panel design of the solar panel reduce fragility and damage during transportation and save cost for shipment

Battery Advantage:

New cylinder 12V/40AH lithium iron phosphate battery.
Output power: DC12V 5A DC connector: 5.5*2.1mm

Advantages of the controller:

- Support Tuya APP display power usage and charging/discharging status on the phone
- Remote control of power switch
- Multiple connection methods including APP, 4G, WiFi, and 485 interface to achieve IoT interconnectivity
- Optional output power of 12V/24V/48V

Solar panel:

Monocrystalline silicon, charging efficiency 4-6 hours full battery
It can supply power for 10-15W products for about 15 days on rainy days

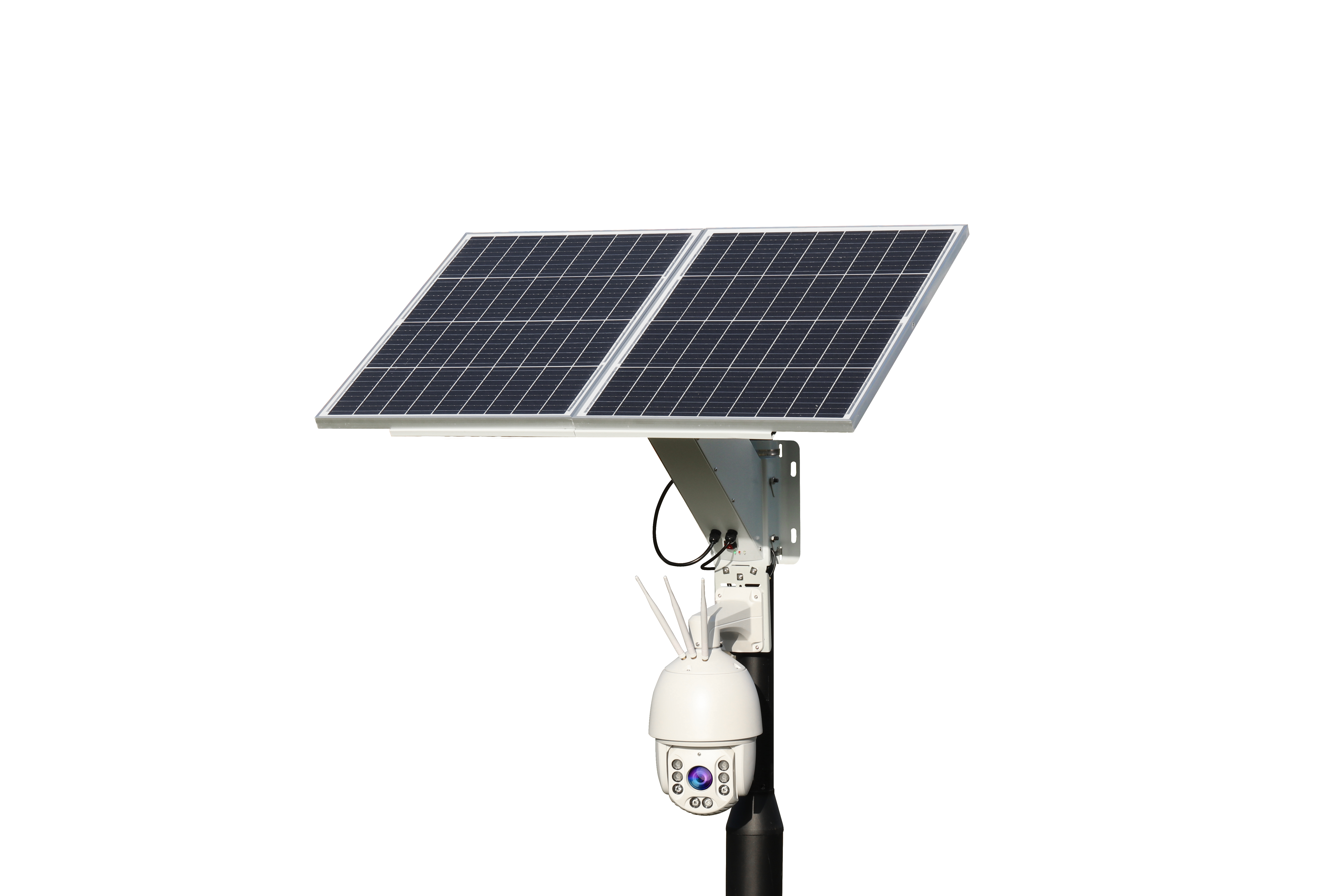

It can be used for 6-8 inch 4G camera monitoring, outdoor industrial CCTV, outdoor audio, outdoor speakers, sensors, environmental water testing and other 12V/24v/48v voltage products

Support Tuya APP display power usage and charging/discharging status on the phone

- Remote control of power switch

- Multiple connection methods including APP, 4G, WiFi, and 485 interface to achieve IoT interconnectivity

- Optional output power of 12V/24V/48V

Battery type: Lithium iron phosphate battery

Battery type: lithium iron phosphate battery

Battery capacity: 40AH

Nominal voltage: 12.8v

Charge:

Maximum charging voltage 14.6

Maximum continuous charging current ≤30

Discharge:

Minimum discharge termination voltage 8

Maximum continuous discharge current ≤30

Overcharge protection:

Overcharge detection voltage 3.9±0.05V

Overcharge recovery voltage 3.8±0.1V

Overdischarge protection:

Overdischarge detection voltage 2.0±0.1V

Overdischarge recovery voltage 2.3±0.1V

Boost inverter controller

*Support Realtime remote monitor Status of system*Support Realtime remote monitor Status of system

MPPT controller:
Boost conversion efficiency: > 85%
Rated output: 12V/20A, 24V/10A,48V/5A.
Output status indicator: 12V/20A, 24V/10A, 48V/5A. Normal voltage output: LED steady on
Over-discharge protection activation: LED off

Discharge protection function:
Overdischarge protection starting voltage ≤11.2V
Overdischarge protection recovery voltage ≥12V
Overcharge protection starting voltage ≥14.4V
Overcharge protection recovery voltage ≤14V
Solar photovoltaic panel charging: 18V output

*Option:
Support Tuya APP/ 4G/WiFi /485
Output power: 24V/48V Optional
For detail, pls check with sales people
