Features:
64-CH NVR
8 SATA interface, 2U, H.265&4K
Dual Network interface, RAID0/1/5/6/10
sales@veacam.com
*Support Ultra H.265/H.265/H.264 video formats
*64-channel input
*Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
*Support 2-ch HDMI, 1-ch VGA. HDMI1 and HDMI2 up to 4K (3840x2160) resolution
*HDMI1, HDMI2, VGA independent outputs provided
*Up to 12 Megapixels resolution recording
*Support RAID 0, 1, 5, 6, 10
*8 SATA HDDs, Up to 10TB for each HDD
*Various fisheye dewarping modes for live view and playback for both web interface and GUI
*Support N+1 Hot spare
*Support for 12V Power output
*ANR technology to enhance the storage reliability when the network is disconnected
*Support cloud upgrade
|
Model |
VCNVR-864BA4SD |
|
Video/Audio Input |
|
|
IP Video Input |
64-ch |
|
Two-way Audio Input |
1-ch, RCA |
|
Network |
|
|
Incoming Bandwidth |
384Mbps |
|
Outgoing Bandwidth |
384Mbps |
|
Remote Users |
128 |
|
Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS |
|
Browser |
IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
|
Video/Audio Output |
|
|
HDMI/VGA Output |
VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2(HDMI audio output is not supported): 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
Recording Resolution |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Audio Output |
1-ch, RCA |
|
Audio Compression |
G.711A, G.711U |
|
Synchronous Playback |
16-ch |
|
Liveview display |
VGA: 1/4/6/8/9/16/25/36 HDMI1/HDMI2: 1/4/6/8/9/16/25/36/64 |
|
Corridor Mode Screen |
3/4/5/7/9/10/12/16/32 |
|
Snapshot |
|
|
FTP/Schedule/Event Snapshot |
64-ch snapshot, up to 4K resolution |
|
Decoding |
|
|
Decoding format |
Ultra 265, H.265, H.264 |
|
Live view/Playback |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Capability |
2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 |
|
Hard Disk |
|
|
SATA |
8 SATA interfaces |
|
Capacity |
up to 10TB for each HDD |
|
eSATA |
1 eSATA interface |
|
Disk Group |
Support |
|
Disk Array |
|
|
Array Type |
RAID 0, 1, 5, 6, 10 |
|
Smart |
|
|
VCA Detection by Camera |
Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Auto Tracking, Object Left Behind, Object Removed, Vehicle Control |
|
VCA Search |
Behavior Search, Vehicle Search |
|
People Counting |
People Flow Counting, Crowd Density Monitoring |
|
Smart Intrusion Prevention (SIP), by Camera |
16-ch |
|
General Alarm |
|
|
General Alarm |
Motion, Tampering, Human Body Detection, Video Loss, Alarm input, Audio Detection |
|
Alert Alarm |
IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
|

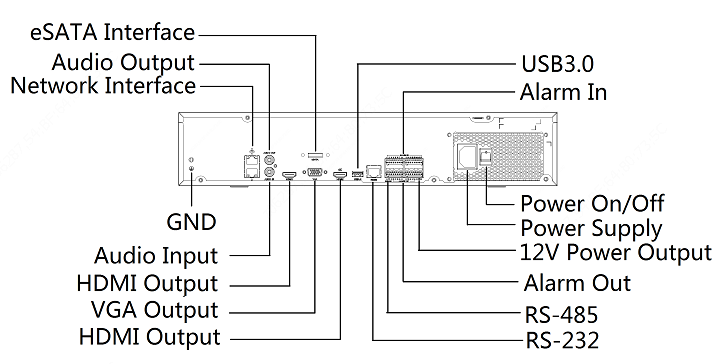

External Interface |
|
|
Network Interface |
2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces |
|
USB Interface |
Front panel: 2 x USB2.0,Rear panel: 1 x USB3.0 |
|
RS232 |
1 |
|
RS485 |
1 |
|
Alarm In |
16-ch |
|
Alarm Out |
4-ch |
|
General |
|
|
Power Supply |
100~240 VAC Power Consumption: ≤ 25 W (without HDD) |
|
Working Environment |
-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) |
|

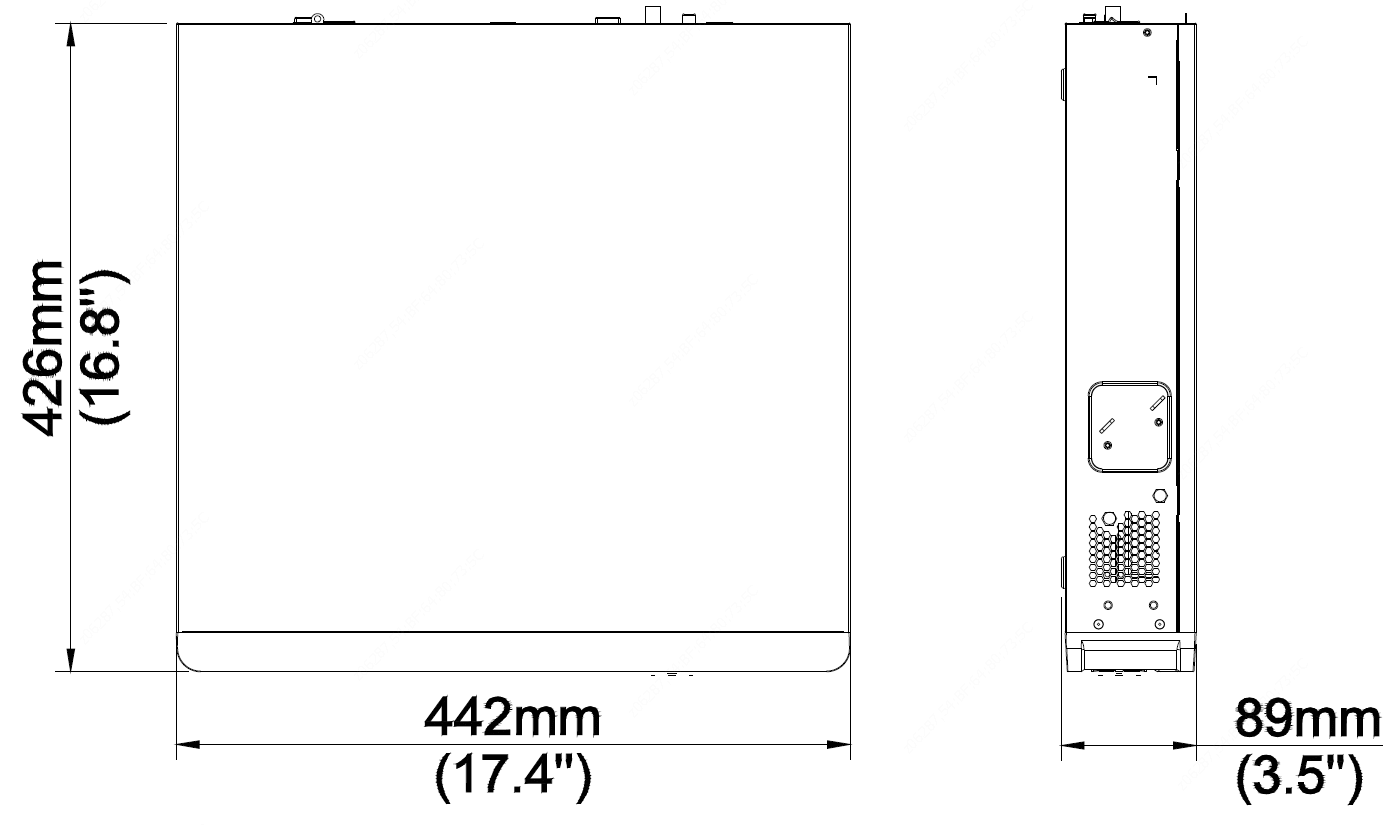

Dimensions (W×D×H) |
442mm ×426mm× 89mm (17.4" × 16.8"× 3.5") |
|
Weight (without HDD) |
≤ 5.7Kg (12.57lb) |
