Model

VCNVR-816BA2S

Video/Audio Input

IP Video Input

16-ch

Two-way Audio Input

1-ch, RCA

Network

Incoming bandwidth

160Mbps

Outgoing bandwidth

96Mbps

Remote Users

128

Protocols

P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

HDMI/VGA Output

HDMI:

4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60

VGA:

1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1280x720@60, 1024x768@60

Audio Output

1-ch, RCA

Recording Resolution

8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Synchronous Playback

16-ch

Corridor Mode Screen

3/4/5/7/9/10/12/16

Decoding

Decoding format

Ultra265/H.265/H.264

Live view/Playback

8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

1 x 4K@30, 1 x 6MP@30,1 x 5MP@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30,16 x D1

Hard Disk

SATA

2 SATA interface

Capacity

up to 6TB for each disk

Smart

VCA Detection

Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking

VCA Search

Face search, Behavior search

Statistical Analysis

People counting

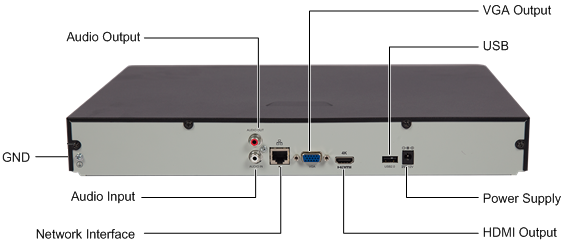

External Interface

Network Interface

1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface

USB Interface

Rear panel: 1 x USB2.0, Front panel: 1 x USB2.0

General

Power Supply

12V DC

Power Consumption: ≤ 7 W (without HDD)

Working Environment

-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)

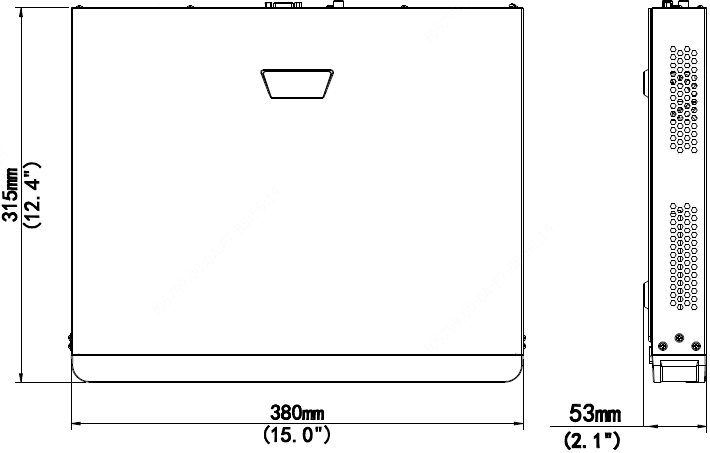

Dimensions (W×D×H)

380mm × 315mm ×53mm (15.0" × 12.4" ×2.1")

Weight (without HDD)

≤ 1.6Kg (3.53lb)
