Features:
1/2.7" CMOS, ICR,
3840*2160 15fps,

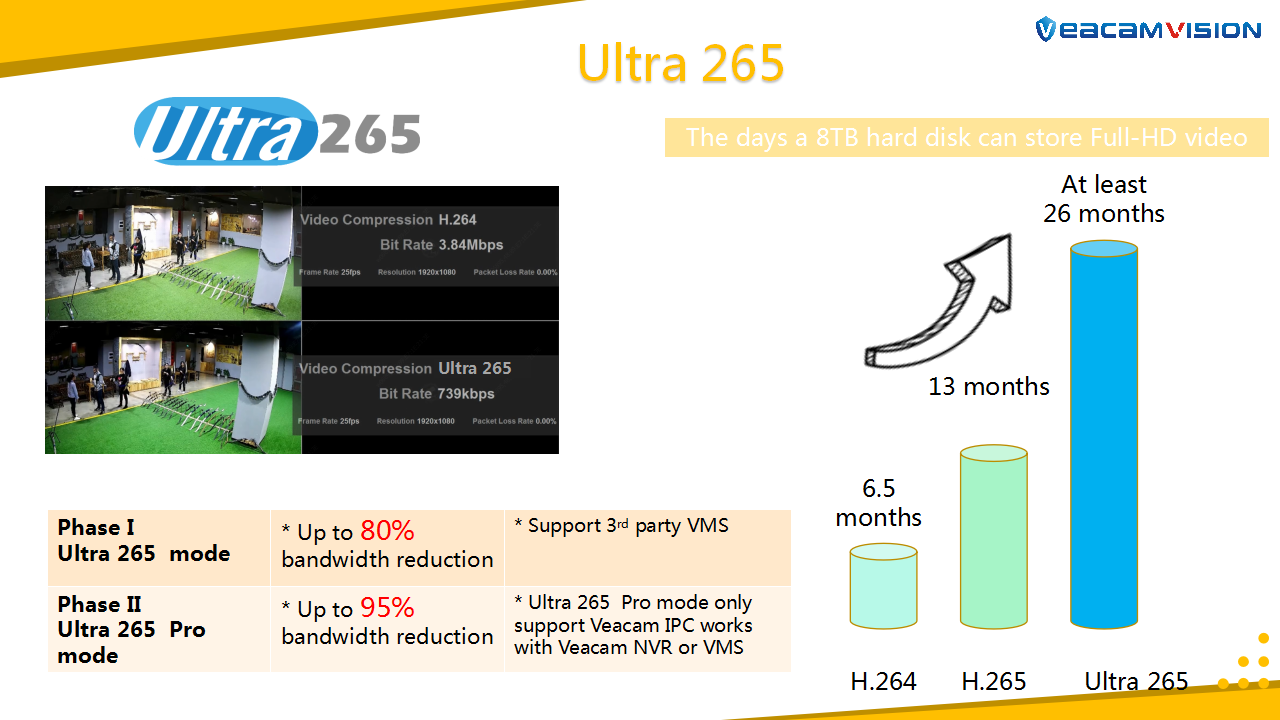

Ultra 265/H.265/H.264/MJPEG,
Dual stream, DC12V & PoE,
Fixed lens (2.8mm,4mm), IP67,
IR range: up to 30mHigh quality image with 8MP, 1/2.7"CMOS sensor

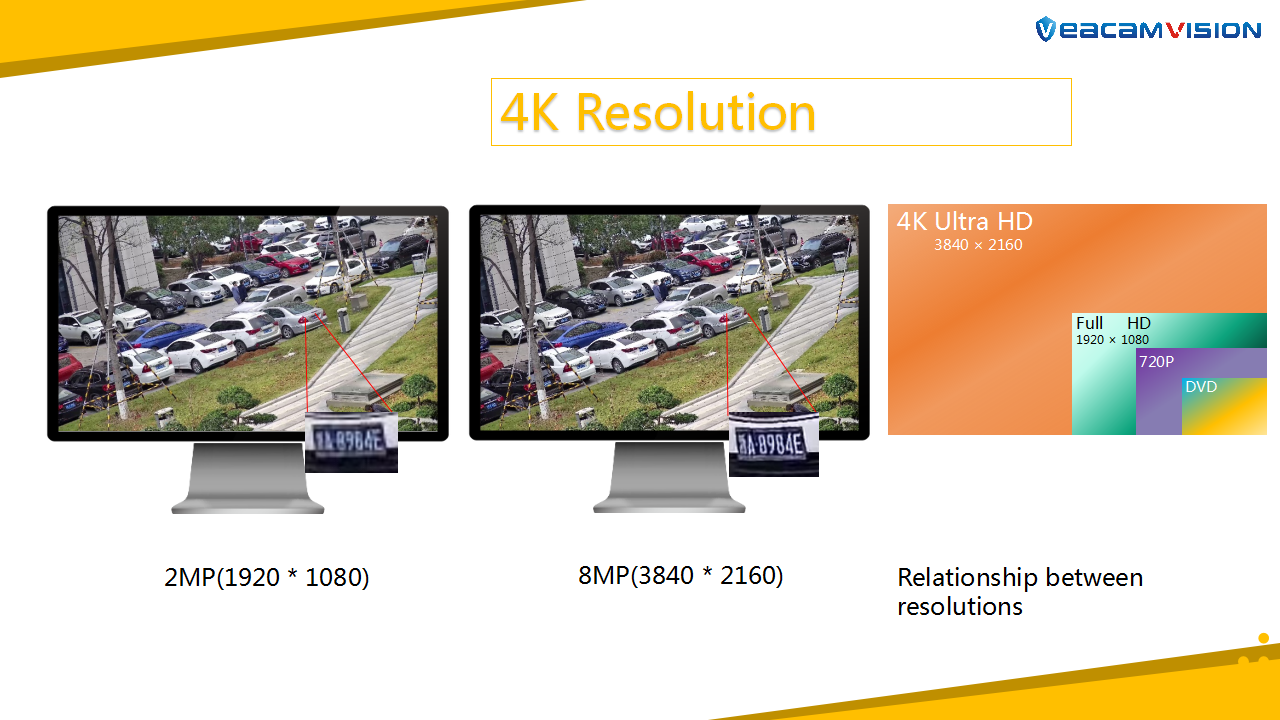

8MP(3840*2160)@15fps;5MP(2880*1620)@25/20fps;4MP(2560*1440)@25/20fps;3MP(2304*1296)@30/25fps;2MP(1920*1080)@30/25fps; 720P (1280*720)@30/25fps
H.265, H.264, MJPEG
Built-in Mic
Smart IR, up to 30m (98ft) IR distance

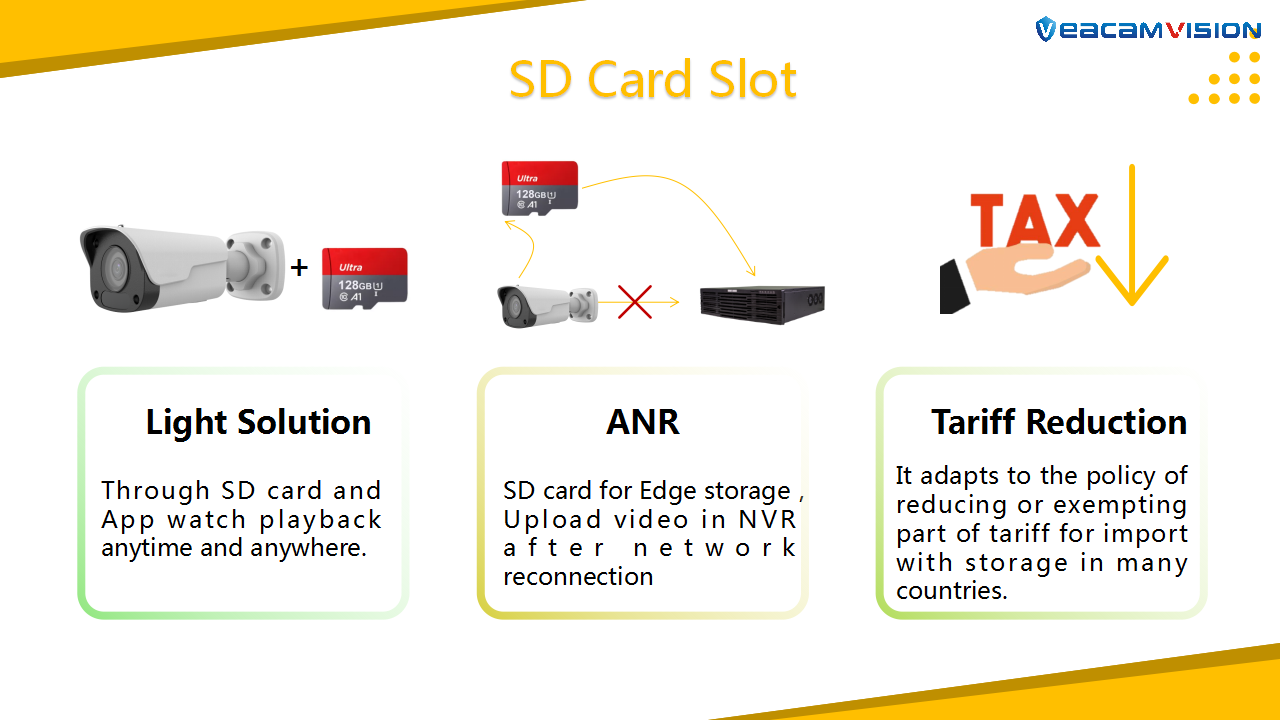

Supports 256 G Micro SD card
IP67 protection
Support PoE power supply
3-Axis
|
|
WVCD30BP828 |
||||
|
Camera |
|||||
|
Sensor |
1/2.7", 8.0 megapixel, progressive scan, CMOS |
||||
|
Min. Illumination |
Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR |
||||
|
Day/Night |
IR-cut filter with auto switch (ICR) |
||||
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
||||
|
Adjustment angle |
Pan: 0° ~ 360° , Tilt: 0° ~ 80°, Rotate: 0° ~ 360° |
||||
|
S/N |
>56dB |
||||
|

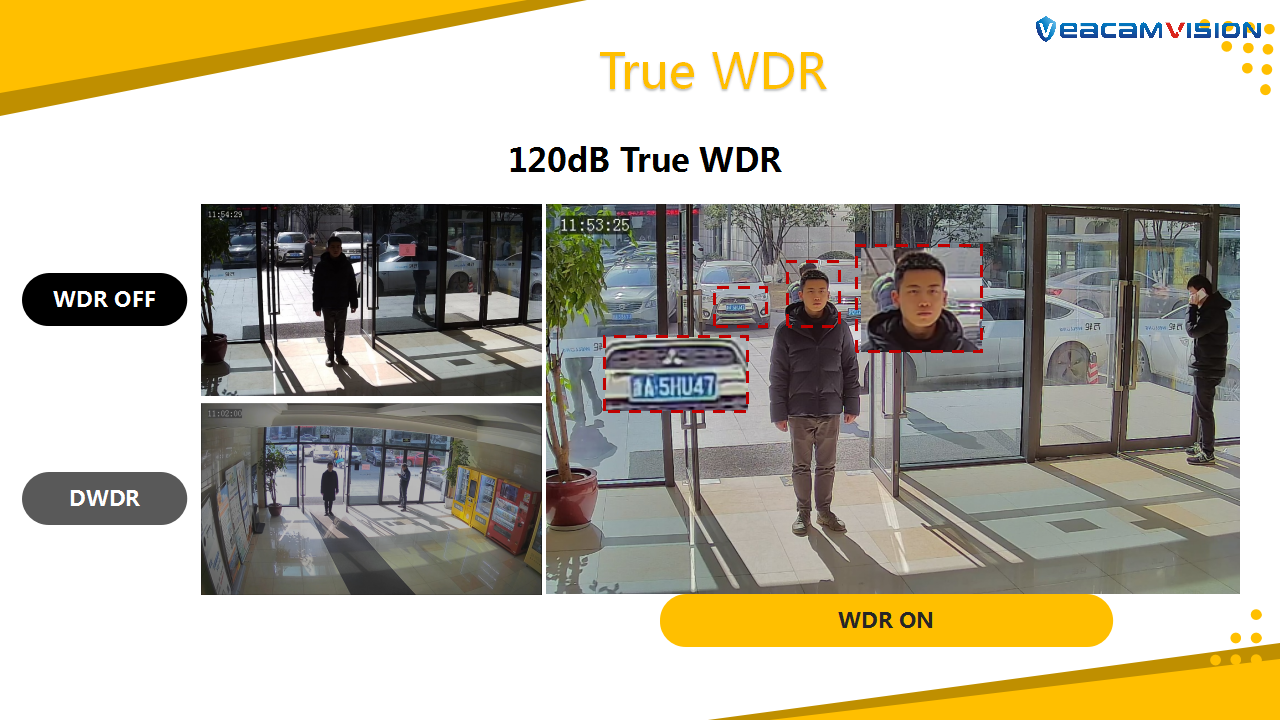

WDR |
120dB |
||||
|
Lens |
|||||
|
Lens Type |
|||||
|
Field of View (H) |
TBD |
||||
|
Field of View (V) |
TBD |
||||
|
Field of View (D) |
TBD |
||||
|
DORI |
|||||
|
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
|
2.8 |
63.0 |
25.2 |
12.6 |
6.3 |
|
|
Illuminator |
|||||
|
IR Range |
Up to 30m (98ft) IR range |
||||
|
Wavelength |
850nm |
||||
|
IR On/Off Control |
Auto/Manual |
||||
|
Video |
|||||
|
Video Compression |
H.265, H.264, MJPEG |
||||
|
H.264 code profile |
Baseline profile, Main profile, High profile |
||||
|
Frame Rate |
Main Stream: 8MP (3840*2160) , Max 15fps; 5MP (2880*1620) , Max 25fps ;4MP (2560*1440) , Max 25fps; 3MP (2304*1296) , Max 30fps; 2MP (1920*1080) , Max 30fps 720P (1280*720) , Max 30fps Sub Stream: 720P (1280*720) , Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; |
||||
|
Video Bit Rate |
128 Kbps~16384 kbps |
||||
|
U-code |
Supported |
||||
|
OSD |
Up to 4 OSDs |
||||
|
Privacy Mask |
Up to 4 areas |
||||
|
ROI |
Up to 8 areas |
||||
|
Motion Detection |
Up to 4 areas |
||||
|
Image |
|||||
|
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
||||
|
Image Setting |
Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser |
||||
|
Digital noise reduction |
2D/3D DNR |
||||
|
Smart IR |
Support |
||||
|
Flip |
Normal/Vertical/Horizontal/180° |
||||
|
Dewarping |
N/A |
||||
|
HLC |
Supported |
||||
