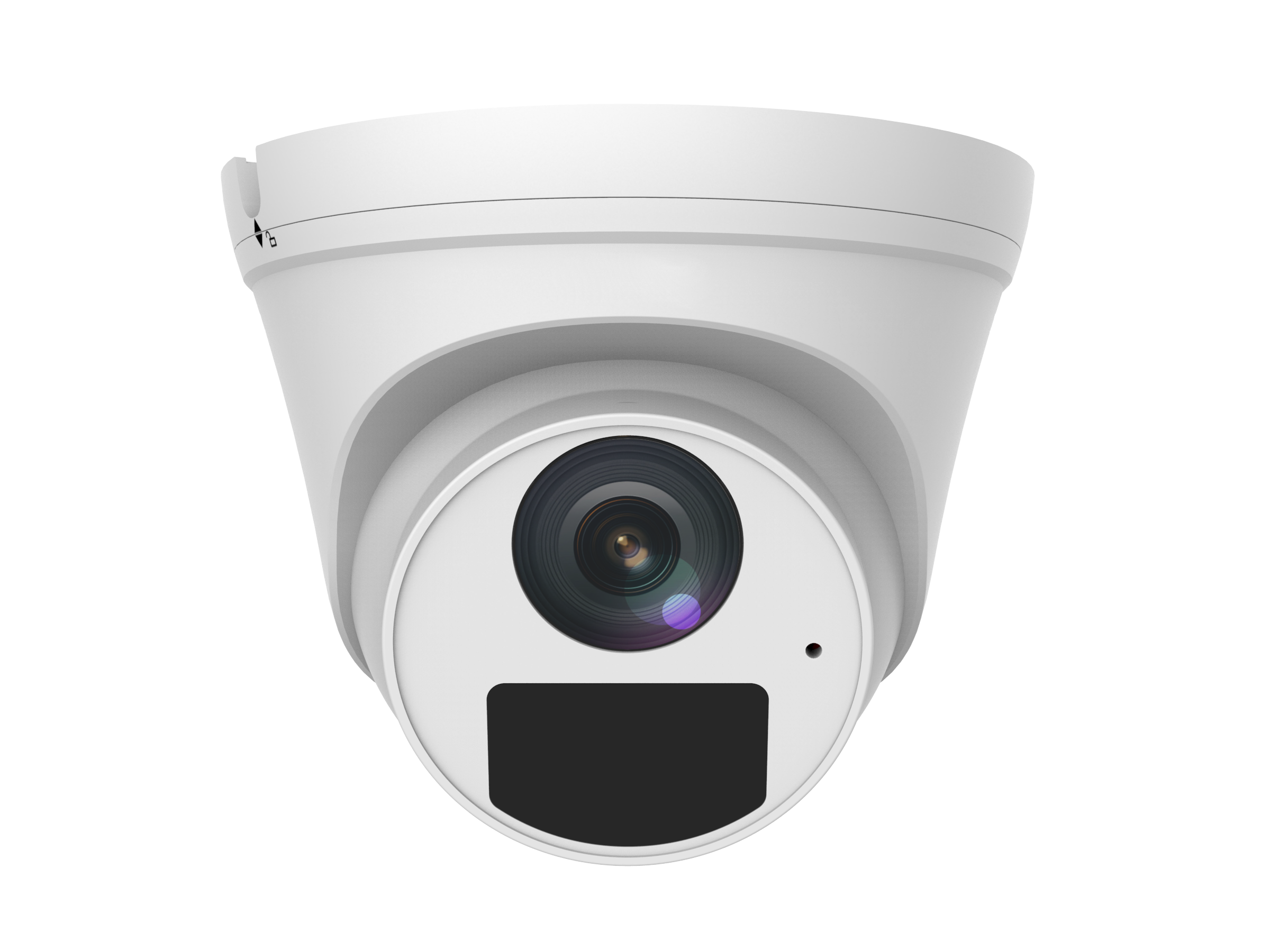

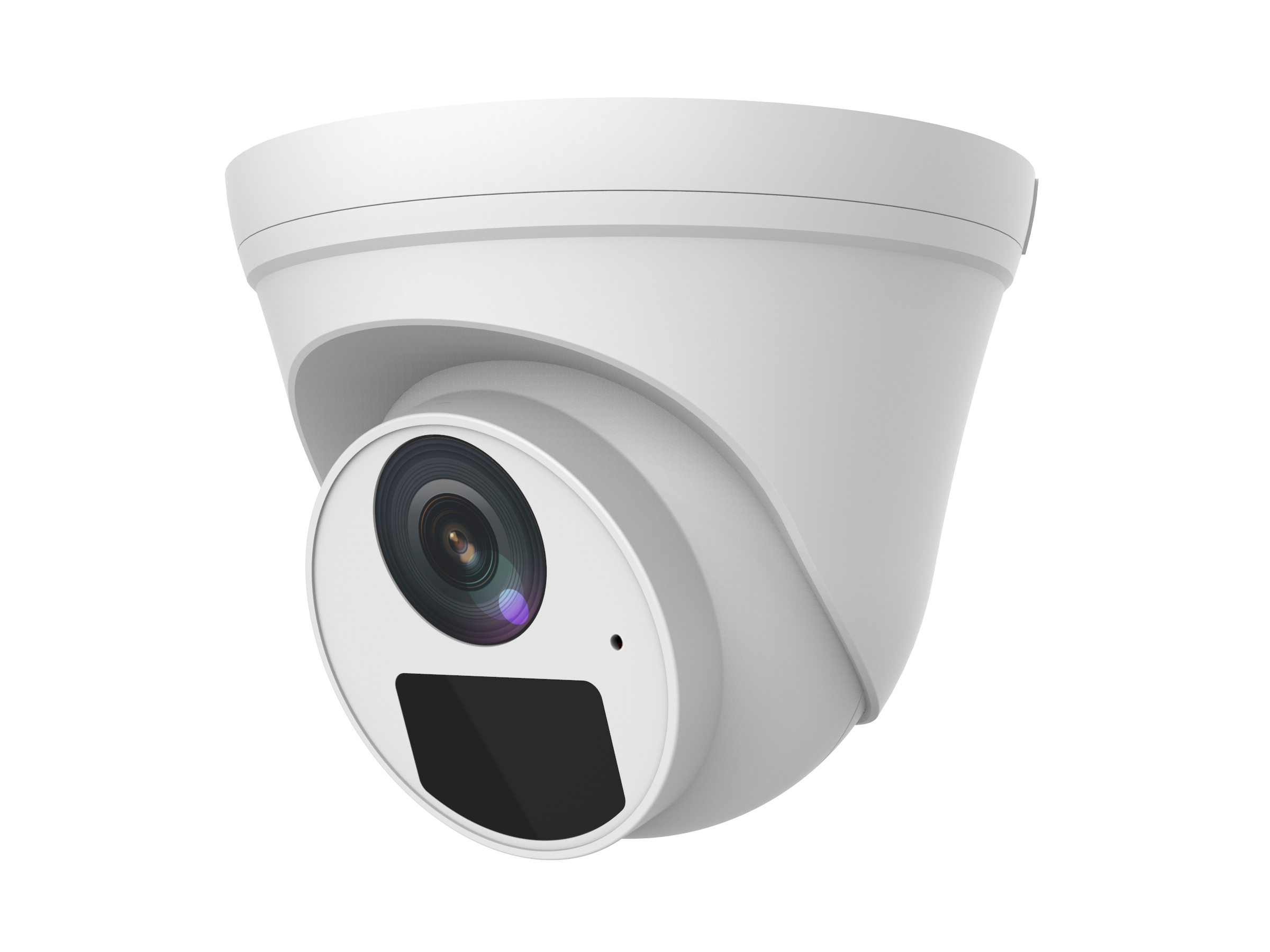

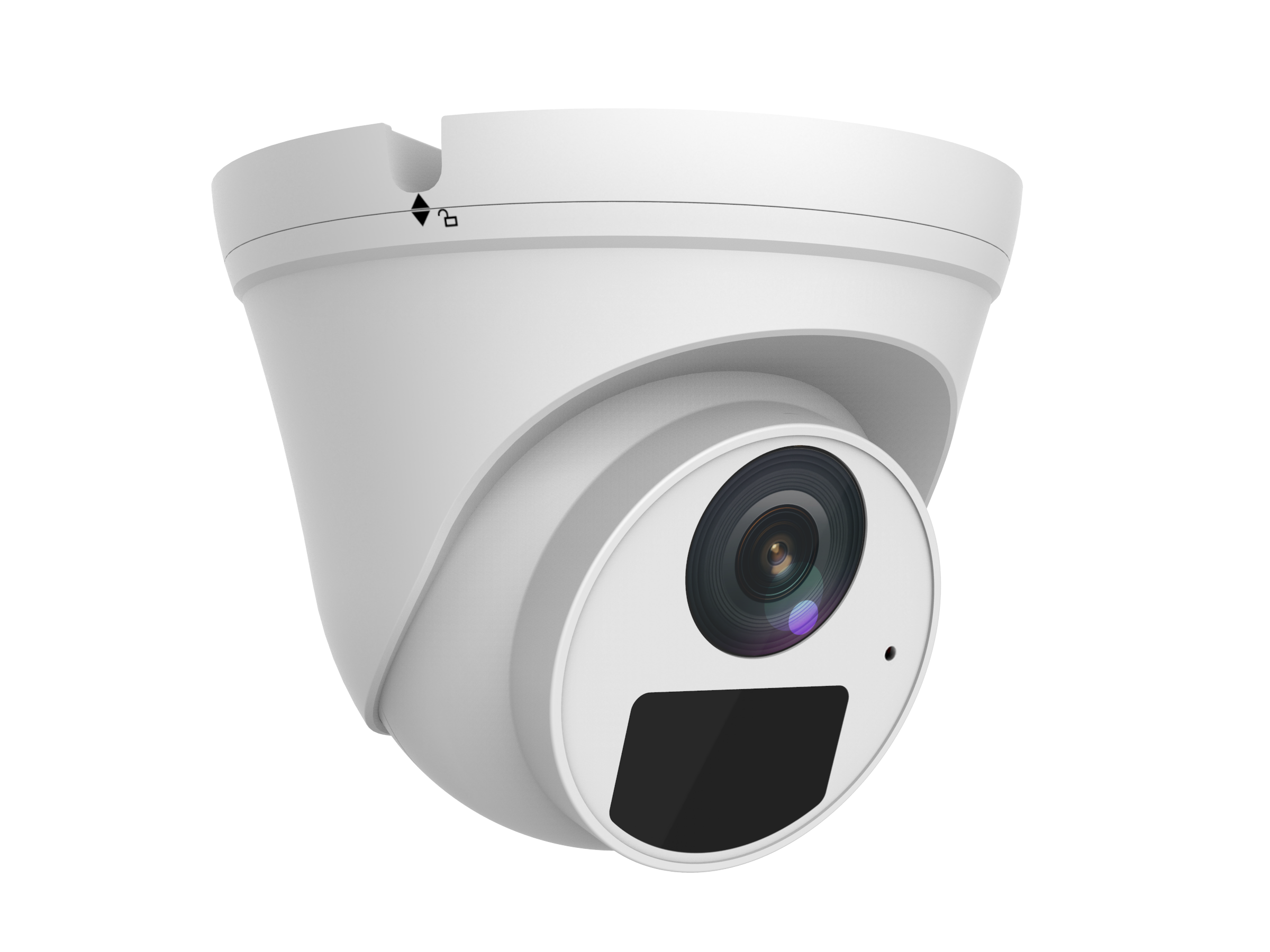

IPC-T124-APF28

IPC-T124-APF40

Camera

Sensor

1/3", progressive scan, CMOS

Lens

2.8mm@F2.1

4.0mm@F2.1

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

2.8

63.0

25.2

12.6

6.3

4.0

90.0

36.0

18.0

9.0

Angle of View (H)

97.0°

79.0°

Angle of View (V)

52.2°

42.3°

Angle of View (O)

107.5

85.1°

Adjustment angle

Pan: 0° ~ 360°

Tilt: 0° ~ 80°

Rotate: 0° ~ 360°

Shutter

Auto/Manual, 1 ~ 1/100000s

Minimum Illumination

Colour: 0.02Lux (F2.1, AGC ON)

0Lux with IR on

Digital noise reduction

2D/3D DNR

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>56dB

IR Range

Up to 30m (98ft) IR range

Defog

Digital Defog

WDR

DWDR

Audio

Audio Compression

G.711

Suppression

Supported

Sampling Rate

8KHZ

Video

Video Compression

Ultra 265, H.265, H.264

H.264 code profile

Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 4MP (2560*1440), Max 20fps; 3MP (2304*1296), Max 20fps; 1080P (1920*1080), Max 30fps;

Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

HLC

Supported

BLC

Supported

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, RTMP

Compatible Integration

ONVIF (Profile S, Profile T), API

Interface

Network

10/100M Base-TX Ethernet

Built-in Mic

Supported

General

Power

DC 12V±25%, PoE

Power consumption: Max 3.5W

Dimensions (Ø x H)

Ø118 x 97mm (Ø4.6” x 3.8”)

Weight

0.27kg (0.60lb)

Working Environment

-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge Protection

4KV

Ingress Protection

IP67

Reset Button

N/A
