Features:

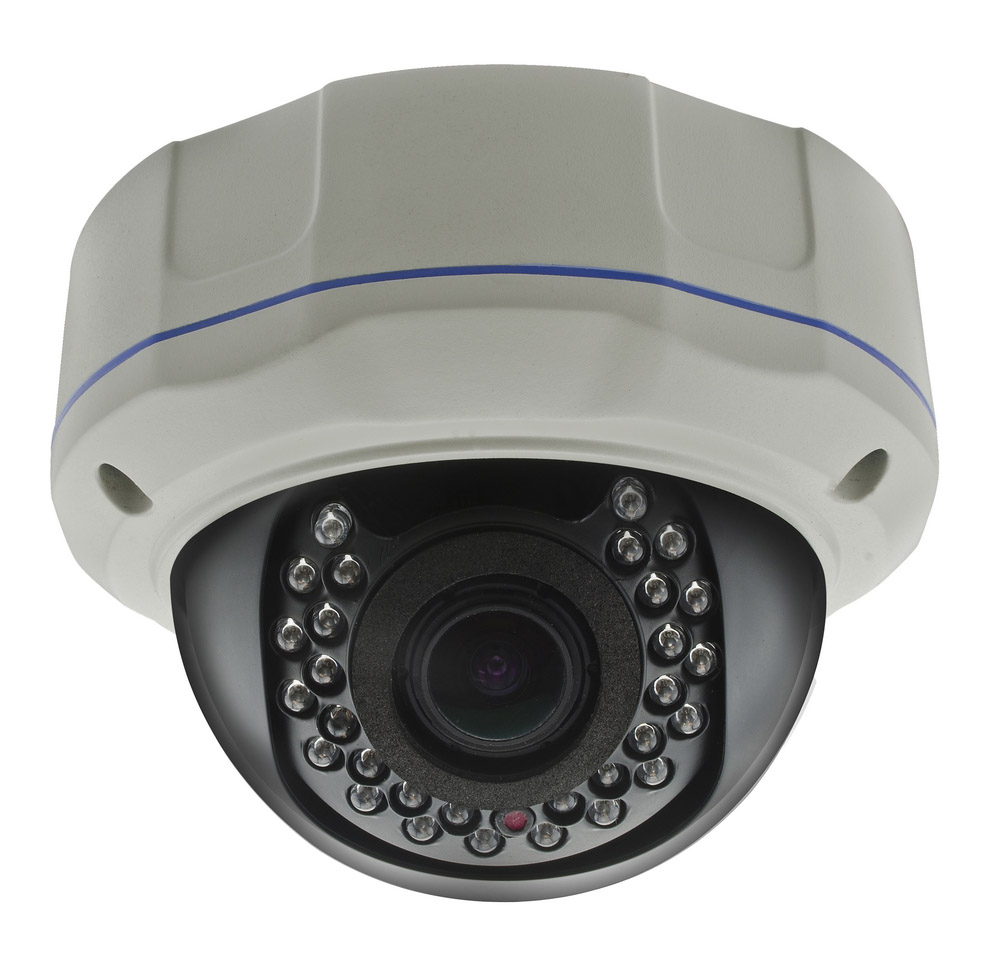

3.5" Vandalproof Dome Camera
2.8-12mm Manual Zoom Lens
LED: ￠5X30pcs
25M IR Range
3-Axis Bracket Built-in
1.SMD Led
Latest Technical to Improve the Image Clarity from 88% ~ 95%
2.WHat’ s TRUE WDR (SENSOR WDR)?
True WDR is a sensor-based technology, camera with this technology can produce images with an extremely wide dynamic range. The WDR image sensor can capture several images with short and long exposures, then combining them into a single frame. True WDR can be adjusted using three pre-set levels (Low/Mid/High) according to the lighting conditions. Proper calibration of WDR level is essential to achieving the best result –setting the WDR level too low may not produce satisfying visibility, while setting the WDR level to high may lead to washed out images.
Veacam supplies mini spy cameras as small as the size of a quarter which can be hidden in any object that the customer chooses.
And hidden surveillance cameras, hidden spy cameras, and covert cameras, are often the best type of camera when the goal is to monitor people and property secretly.
|
Model NO. |
VCDVO10 |
VCDVO20A |
VCDVO20 |
VCDVO20L |
VCDVO20W |
VCDVO30 |
VCDVO40V |
VCDVO40S |
||
|
Video Output Mode |
AHD/CVI/TVI/ CVBS |
AHD/CVI/TVI/ CVBS |
AHD/CVI/TVI/CVBS |
AHD/CVI/TVI/ CVBS |
AHD/CVI/TVI/ CVBS |
AHD/CVI/TVI/ CVBS |
AHD/CVI/TVI/ CVBS |
AHD/CVI/TVI/ CVBS |
||
|
Chipset |
||||||||||
|
Image Sensor |
1/4" CMOS H62 |
1/2.7"Aptina AR0237 |
1/2.9"SONY IMX323 |
1/2.8"SONY IMX291 |
1/2.8"SONY IMX290 |
1/2.8"Aptina AR0330 |
1/3"OV4689 |
1/3"Sony326 |
||
|
DSP |
V20E |
V30E |
V30E |
NVP2441H |
FH8550M |
NVP2470 |
FH8538M |
FH8538M |
||
|
Image Resolution |
720P/ 960H |
1080P / 960H |
1080P/960H |
1080P/960H |
1080P/960H |
3MP |
4MP |
4MP |
||
|
Effective Pixels |
1280*720 |
1920*1080 |
1920*1080 |
1920*1080 |
1920*1080 |
2048*1536 |
2560*1440 |
2560*1440 |
||
|
TV System |
PAL/NTSC |
|||||||||
|
Electronic Shutter |
1/25s~1/50,000s , 1/30s~1/60,000s |
|||||||||
|
S/N Ratio |
≥50dB |
|||||||||
|
Scanning System |
Progressive Scan |
|||||||||
|
Lens |
||||||||||
|
Focus Length |
2.8-12mm |
2.8-12mm |
2.8-12mm |
2.8-12mm |
2.8-12mm |
2.8-12mm |
2.8-12mm |
2.8-12mm |
||
|
Focus Control |
Manual |
Manual |
Manual |
Manual |
Manual |
Manual |
Manual |
Manual |
||
|
Lens Type |
Manual |
Manual |
Manual |
Manual |
Manual |
Manual |
Manual |
Manual |
||
|
Pixels |
2M Pixels |
2M Pixels |
2M Pixels |
2M Pixels |
2M Pixels |
3M Pixels |
5M Pixels |
5M Pixels |
||
|
Night Vision |
||||||||||
|
Infrared LED |
￠5X30pcs Leds |
|||||||||
|
Infrared Distance |
25M |
|||||||||
|
IR Status |
Under 10 Lux by CDS |
|||||||||
|
IR Power On |
CDS Auto Control |
|||||||||
|
Camera Features |
||||||||||
|
Day/Night |
YES |
YES |
YES |
YES |
YES |
YES |
YES |
YES |
||
|
OSD Menu Language |
YES |
YES |
YES |
YES |
YES |
YES |
YES |
YES |
||
|
White Balance |
Auto/Manual |
Auto/Manual |
Auto/Manual |
Auto/Manual |
Auto/Manual |
Auto/Manual |
Auto/Manual |
Auto/Manual |
||
|
Gain Control |
AUTO |
AUTO |
AUTO |
AUTO |
AUTO |
AUTO |
AUTO |
AUTO |
||
|
Noise Reduction |
DNR |
3DNR |
3DNR |
3DNR |
3DNR |
3DNR |
DNR |
DNR |
||
|
Picture Adjustment |
YES |
YES |
YES |
YES |
YES |
YES |
YES |
YES |
||
|
WDR |
DWDR |
DWDR |
YES |
YES |
YES |
YES |
YES |
YES |
||
|
OSD Support |
Optional |
YES |
YES |
YES |
YES |
YES |
YES |
YES |
||
|
UTC |
YES |
YES |
YES |
YES |
YES |
YES |
YES |
YES |
||
|
General |
||||||||||
|
Housing |
Metal, IP66 |
|||||||||
|
Bracket |
YES |
|||||||||
|
IR Cut Filter |
YES |
|||||||||
|
Operation Temperature |
-10℃ ~ +50℃ RH95% Max |
|||||||||
|
Storage Temperature |
-20℃ ~ +60℃ RH95% Max |
|||||||||
|
Power Source |
DC12V±10%, 450mA |
|||||||||
|

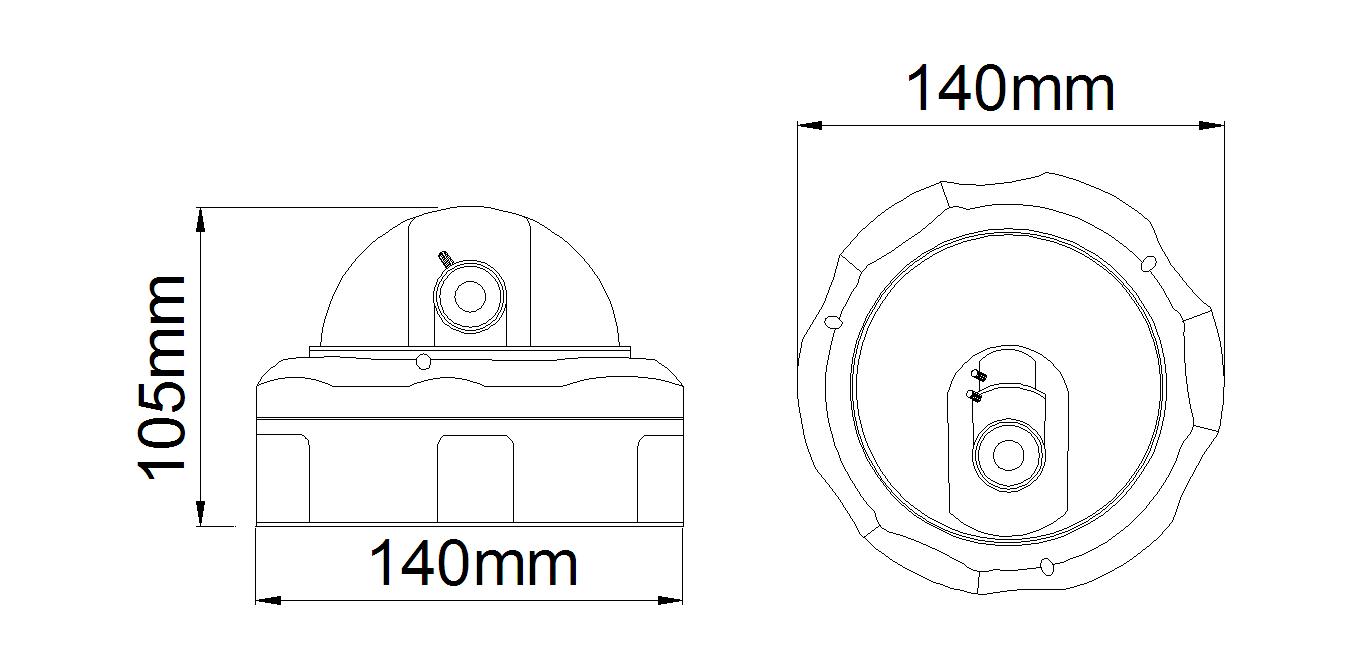

Dimension |
105(H)*140(D)mm |
|||||||||
|
Weight |
1150g |
|||||||||
Please enter your inquiry details such as model no., lens, color,quantity,ect .
