Features:
Covert PIR IR IP Camera
Lens:Pinhole Lens 3.7MM
18pcs 940nm Leds
Power: DC12V. POE optional
Support more than 20 languages
Mobile Phone View
Support P2P Function/DDNS
Motion Detection
Free CMS,Support ONVIF2.4/RTSP
1.SMD Led
Latest Technical to Improve the Image Clarity from 88% ~ 95%
True WDR is a sensor-based technology, camera with this technology can produce images with an extremely wide dynamic range. The WDR image sensor can capture several images with short and long exposures, then combining them into a single frame. True WDR can be adjusted using three pre-set levels (Low/Mid/High) according to the lighting conditions. Proper calibration of WDR level is essential to achieving the best result –setting the WDR level too low may not produce satisfying visibility, while setting the WDR level to high may lead to washed out images.
|
Difference |
Digital WDR |
True WDR |
BLC (Backlight compensation) |
|
Technology |
Adjusts the gamma (Y) value to enhance dark areas |
Combines long and short exposures into one frame |
Increase the level of exposure for the entire image |
|
Pros |
Good quality image |
Best quality image |
Object of interest is clear |
|
Cons |
Image may be slightly washed out |
May have minor color restoration problem or color dispersion |
Overexposure in brightly lighted areas |
Sony newest Starvis CMOS image sensor (IMX290/291)hat widely used in starlight HD analog /network cameras, it can capture Full HD 1080p resolution video with vivid color and high quality at 60 frames per second, ideally suitable for the high-speed motion scenes.
In complete darkness condition (<= 0.001 Lux), using the Infrared lighting to capture video is the common solution to meet the night video surveillance needs, however, the surveillance camera only can capture B/W image; some cameras may use the white lighting to achieve color video surveillance at night, but the result is not satisfied because of the limitation on illumination distance and angle. Using and deploying the Star-light surveillance cameras can effectively solve the above deficiencies of night video surveillance applications, can fully meet the requirement of night surveillance applications.
|
Model NO. |
WVCSF1E |
WVCSF2 |
WVCSF4 |
|||||
|
Chipset |
||||||||
|
Image Sensor |
1/3"AR0130 |
IMX323 |
OV4689 |
|||||
|
Main processor |
HI3518E |
HI3516C |
Hi3516D |
|||||
|
Resolution |
960P |
1080P |
4MP |
|||||
|
Effective Pixels |
1305(H)*977(V) |
1920(H)*1080(V) |
2688(H)*1520(V) |
|||||
|
Compression |
H.264/JPEG/AVI/MJPEG |
H.264/JPEG/AVI/ MJPEG |
H.264/H.265/JPEG/AVI/MJPEG |
|||||
|
TV System |
PAL/NTSC |
|||||||
|
Electronic Shutter Time |
Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec |
|||||||
|
S/N Ratio |
≥52dB |
|||||||
|
Scanning System |
Progressive |
|||||||
|
Video Output |
Network |
|||||||
|
Focus Length |
3.7mm |
3.7mm |
3.7mm |
|||||
|
Focus Control |
Fixed |
Fixed |
Fixed |
|||||
|
Lens Type |
Fixed |
Fixed |
Fixed |
|||||
|
Pixels |
2MP |
2MP |
5MP |
|||||
|
Infrared LED |
18pcs 940nm Leds |
|||||||
|
Infrared Distance |
10-15M |
|||||||
|
IR Status |
Under 10 Lux By CDS |
|||||||
|
IR Power On |
CDS Auto Control |
|||||||
|
Ethernet |
RJ-45 (10/100Base-T) |
|||||||
|
Protocol |
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP |
|||||||
|
ONVIF |
Support ONVIF 2.4 |
|||||||
|
P2P |
YES, Support QR Code |
|||||||
|
POE |
Optional, Support IEEE 802.3af |
|||||||
|
WIFI |
N/A |
|||||||
|
Video Delay |
0.3S (Within the Lan) |
|||||||
|
Main Stream 1 |
1280*960 @25fps |
1920*1080 @25fps |
2560*1440@20fps |
|||||
|
Main Stream 2 |
/ |
/ |
2304*1296@30fps |
|||||
|
Main Stream 3 |
/ |
/ |
1920*1080@30fps |
|||||
|
Sub Stream 1 |
720*480@25fps |
720*480@25fps |
720*480@20fps |
|||||
|
Sub Stream 2 |
/ |
/ |
/ |
|||||
|
Sub Stream 3 |
/ |
/ |
/ |
|||||
|
Tri Stream |
/ |
352*288@25fps |
352*288@20fps |
|||||
|
IE Brower |
IE8-11, Google Chrome, Firefox, Safari, Mac Safari |
|||||||
|
Smart Phone |
iPhone, iPad, Android, Android Pad |
|||||||
|
Camera Features |
||||||||
|
Day/Night |
Color/ B&W (IR-CUT ) |
|||||||
|
Image Config |
Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control) |
|||||||
|
Corridor Pattern |
/ |
/ |
Support |
|||||
|
Defog Mode |
Support |
Support |
Support |
|||||
|
BLC |
Support |
Support |
Support |
|||||
|
HDR |
/ |
/ |
/ |
|||||
|
WDR |
Support |
|||||||
|
Motion Detection |
Support |
|||||||
|
Privacy Masking |
3 Rectangular Zone |
|||||||
|
Recording Mode |
NVR/NAS/CMS/Web |
|||||||
|
Language |
Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands |
|||||||
|
General |
||||||||
|
Housing |
Plastic |
|||||||
|
Anti-cut Bracket |
Optional |
|||||||
|
IR Cut Filter |
YES |
|||||||
|
Operation Temperature |
-10℃ ~ +50℃ RH95% Max |
|||||||
|
Storage Temperature |
-20℃ ~ +60℃ RH95% Max |
|||||||
|
Power Source |
DC12V 250mA |
|||||||
|

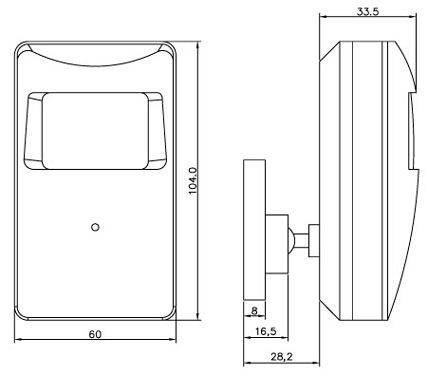

Dimension |
66(W)*105(H)*33.5(D)mm |
|||||||
|
Weight |
350g |
|||||||
