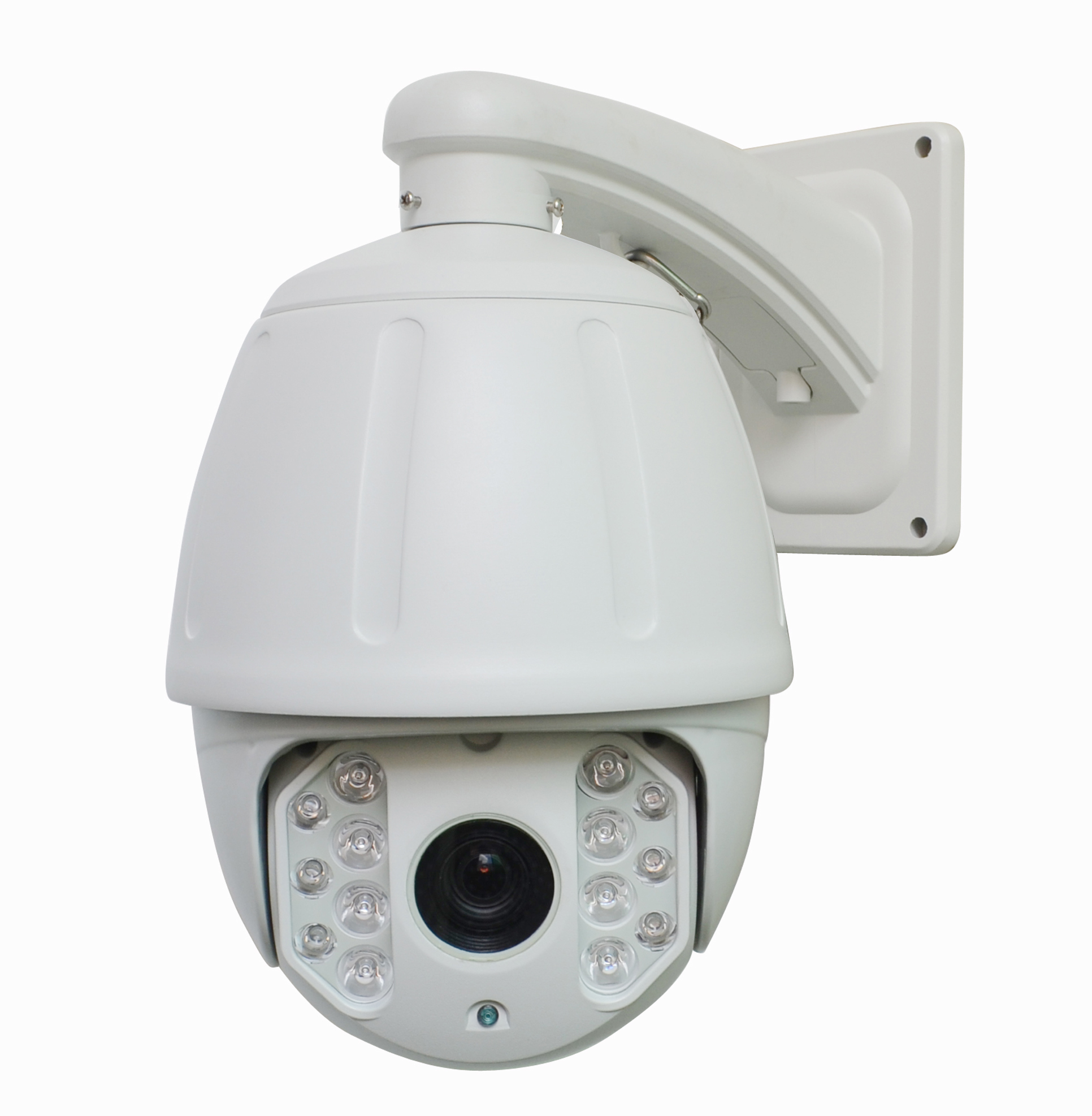

MODLE

VCIRSDW20X20H

Sensor

NVP2441+SONY323

Video Output Mode

AHD/CVI/TVI/ CVBS

Effective pixels

1080P(1080X1920)

Total pixels

2.0 Megapixels

Output Pixel

1920*1080@30fps,1920*1080@25fps,

1280*720@60fps,1280*720@50fps

Lens

20X(f=4.7-94mm)

Iris

F1.6 ~F1.8

FOV

6.7° ~67°

Min. illumination

Color: 0.01 Lux   B/W: 0 Lux

D/N

IR-CUT

BLC

Auto

WB

Auto

S/N Ratio

≥50dB（AGC OFF）

TF Card

Support

Audio frequency

Optional

Audio compression standard

G711，PCM

Communications Protocol

TCP/IP，HTTP，NTP，IGMP，DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，HTTPS，P2P

Compatibility

IE, CMS, HCMS,HIKVISION,UC ONVIF

Mobile View(optional)

Support Windows, Symbian, iPhone platform smartphone

Preset Points

256

Pan/Tilt Range

Horizontal: 0°~350°endless, Vertical: -10°~90° auto  Flip

Manual Control Speed

0.01°-350°/s

Preset Speed

350°/s

Pattern Scan

4 groups

Guard Tours

4 groups

Guard Points

Max.16 points, dwell time user selectable

Operating temperature

Indoor: 0°~ +40°

Pan and Tilt position display

Support

Support ambient light detection

IR illumination on 1-15 grades selectable;

LED

￠42X8PCS

IR distance

up to 100 meters

Support ambient light detection

IR illumination on 1-9 grades selectable;

Humidity

≤75% Non Condensing

Power

 DC12V ≤2A

Consumption

< 10W

Lightning Protection

Transient voltage 6000V

Interface

1 channel network interface, power input

Size/Weight

5.5KG
