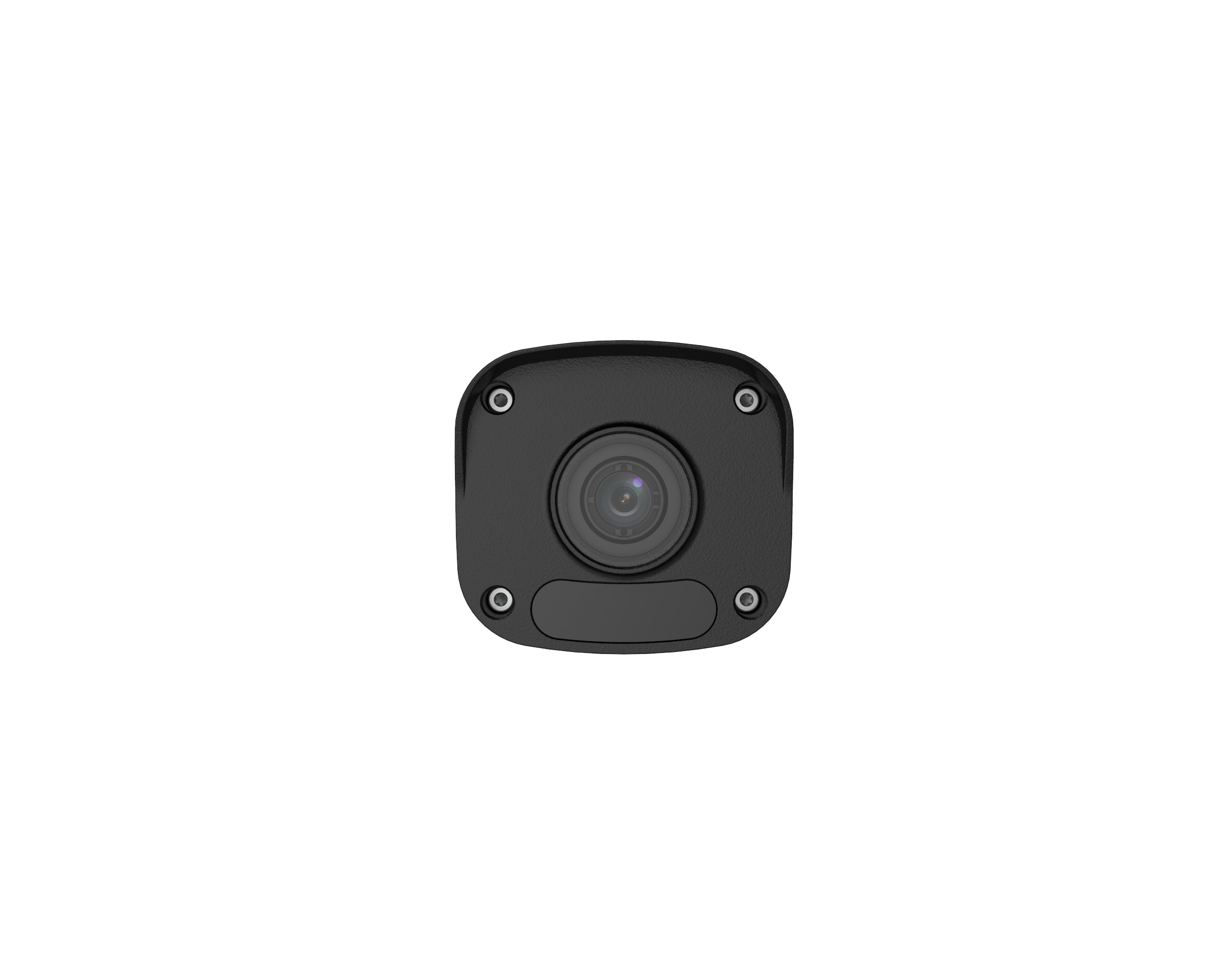

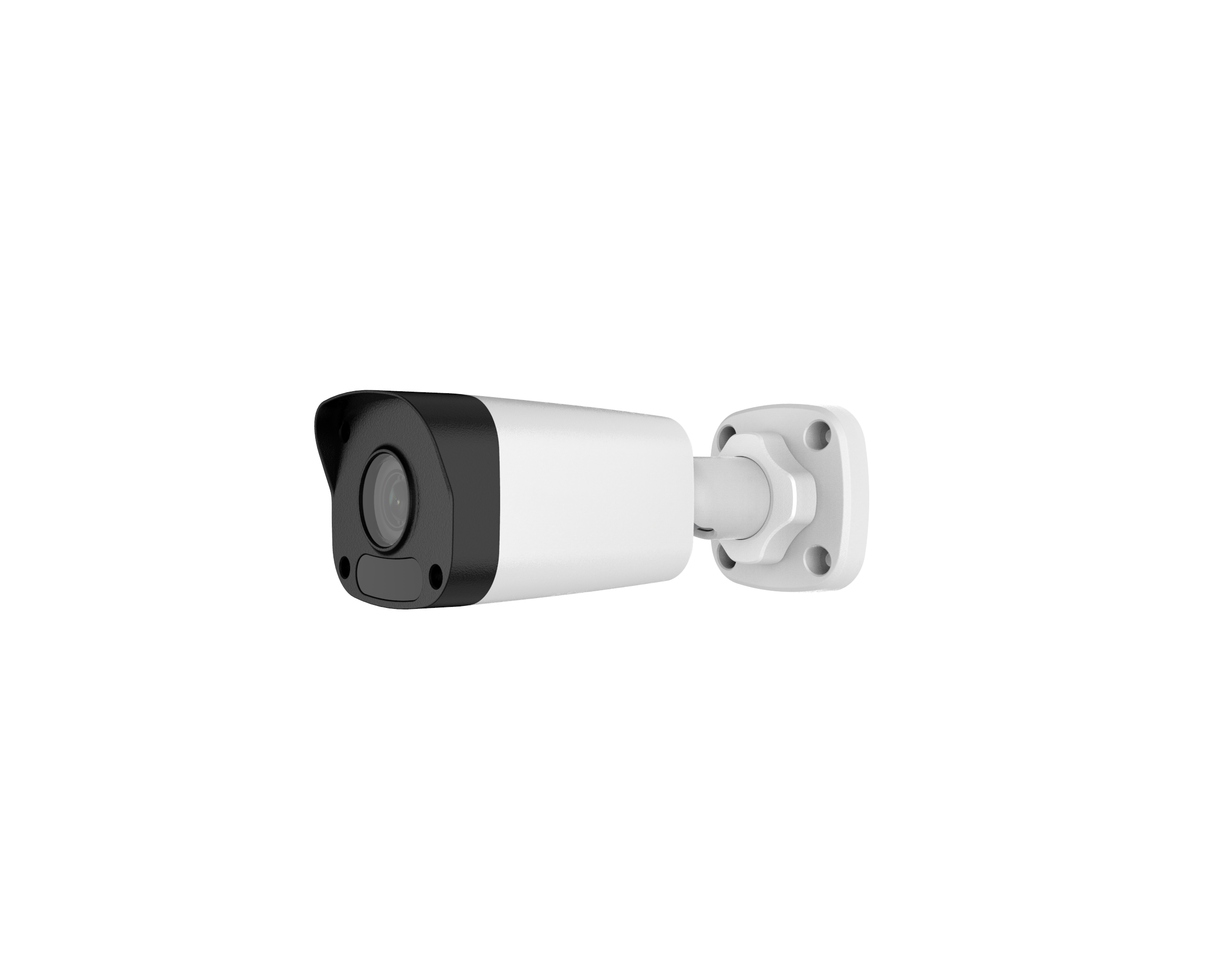

Model

WVCB30DB828

WVCB30DB840

Sensor

1/3", 8.0 megapixel, progressive scan, CMOS

Lens

2.8mm@F2.0

4.0mm@F2.0

DORI Distance

Lens

Detect(m)

Observe(m)

Recognize(m)

Identify(m)

2.8mm

84

33.6

16.8

8.4

4.0mm

120

48

24

12

Angle of View (H)

112.7°

86.5°

Angle of View (V)

60.1°

44.1°

Angle of View (D)

146.5°

106.4°

Adjustment angle

Pan: 0°~360°

Tilt: 0°~90°

Rotate: 0°~360°

Shutter

Auto/Manual, 1~1/100000 s

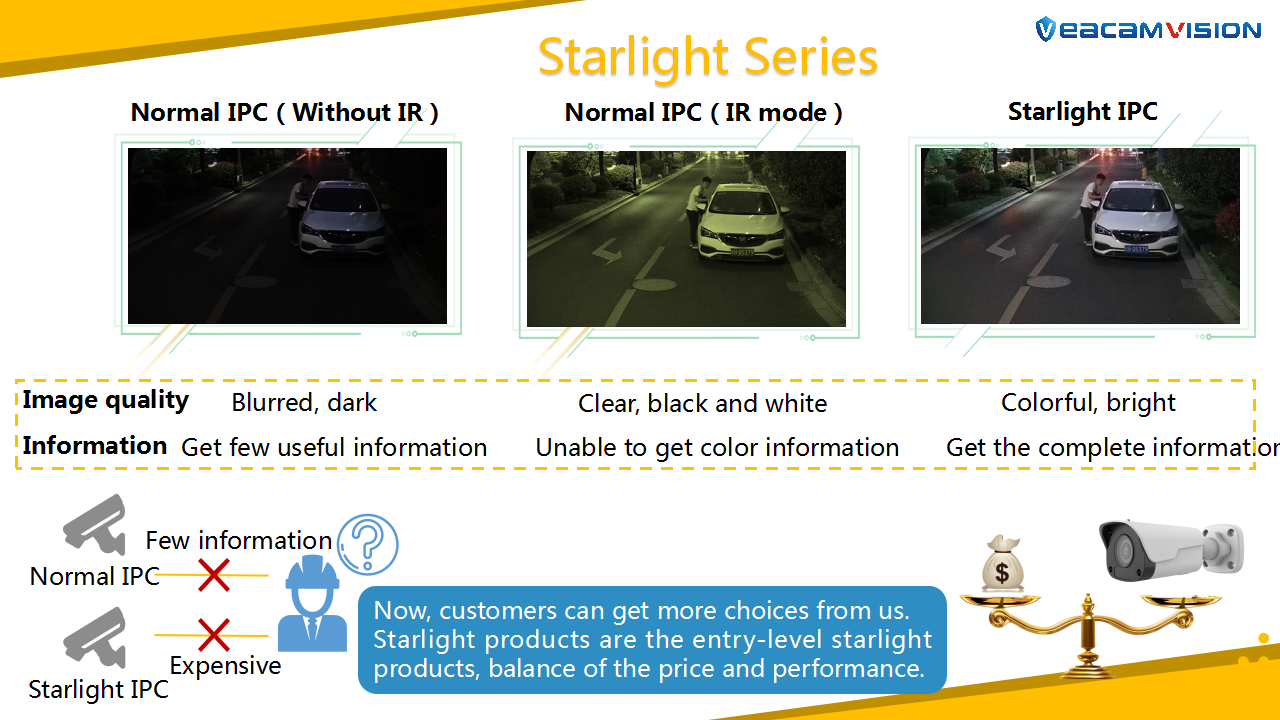

Minimum Illumination

Colour: 0.05 Lux (F2.0, AGC ON)

0 Lux with IR on

Digital noise reduction

2D/3D DNR

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>56dB

IR Range

Up to 30m (98 ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Defog

Digital Defog

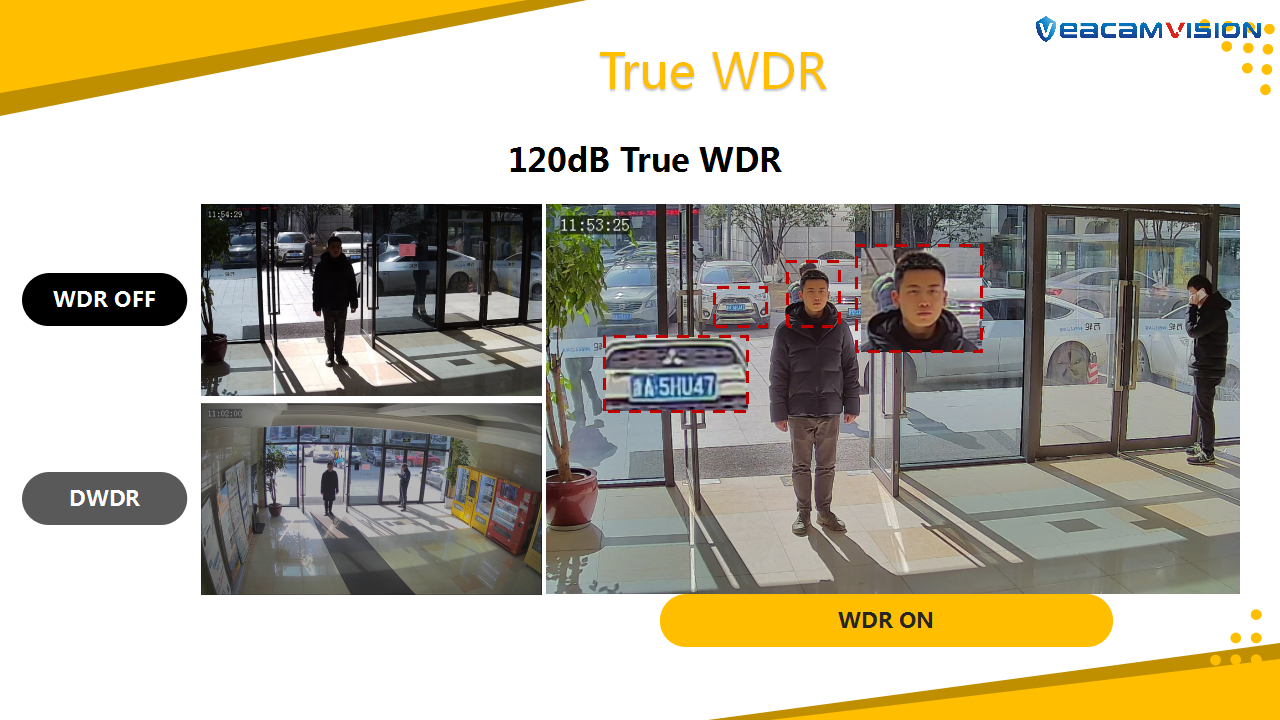

WDR

120dB

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline Profile, Main Profile

Frame Rate

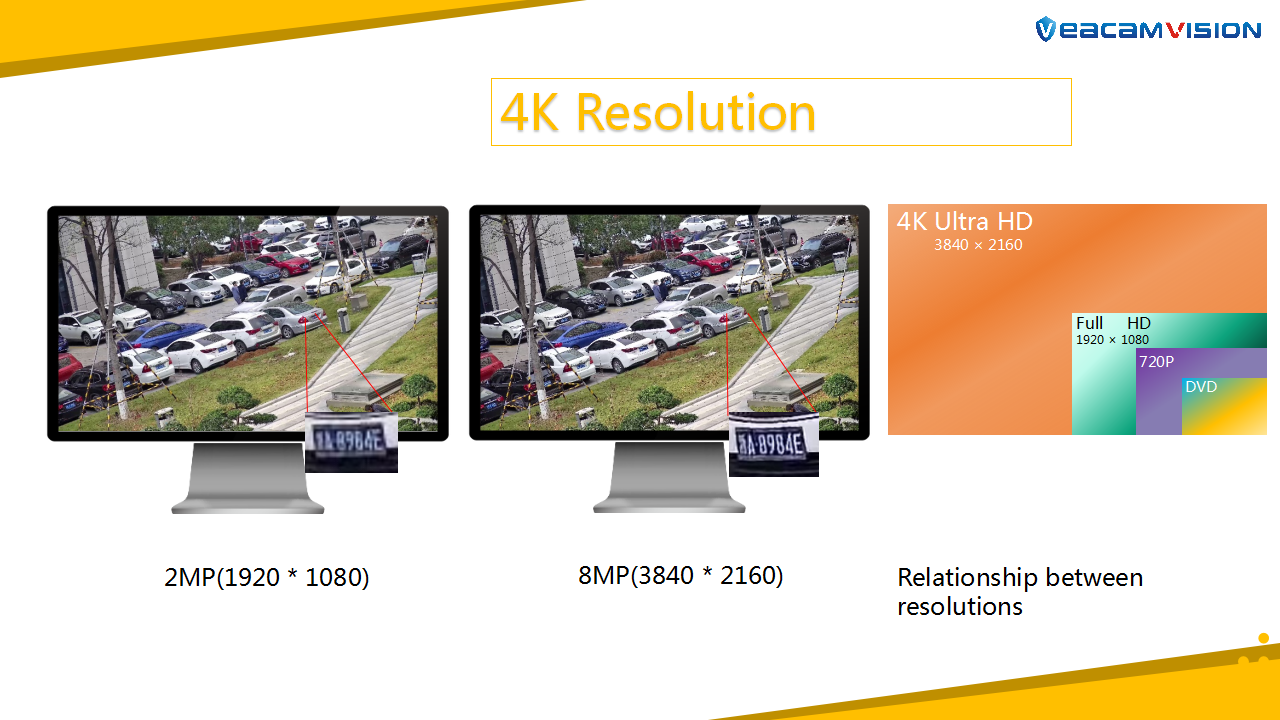

Main Stream:8MP (3840*2160): Max. 20 fps;5MP(2944*1656): Max. 30 fps; 4MP(2560*1440): Max. 30 fps; 2MP(1920*1080): Max. 30 fps

Sub Stream:720P (1280*720): Max. 20 fps

Third Stream:4CIF (704*576): Max. 20 fps

Video Bit Rate

128 Kbps~16 Mbps

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 2 areas

Motion Detection

Up to 4 areas


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Vertical/Horizontal/180°

Dewarping

NA

HLC

Supported

BLC

Supported

Smart

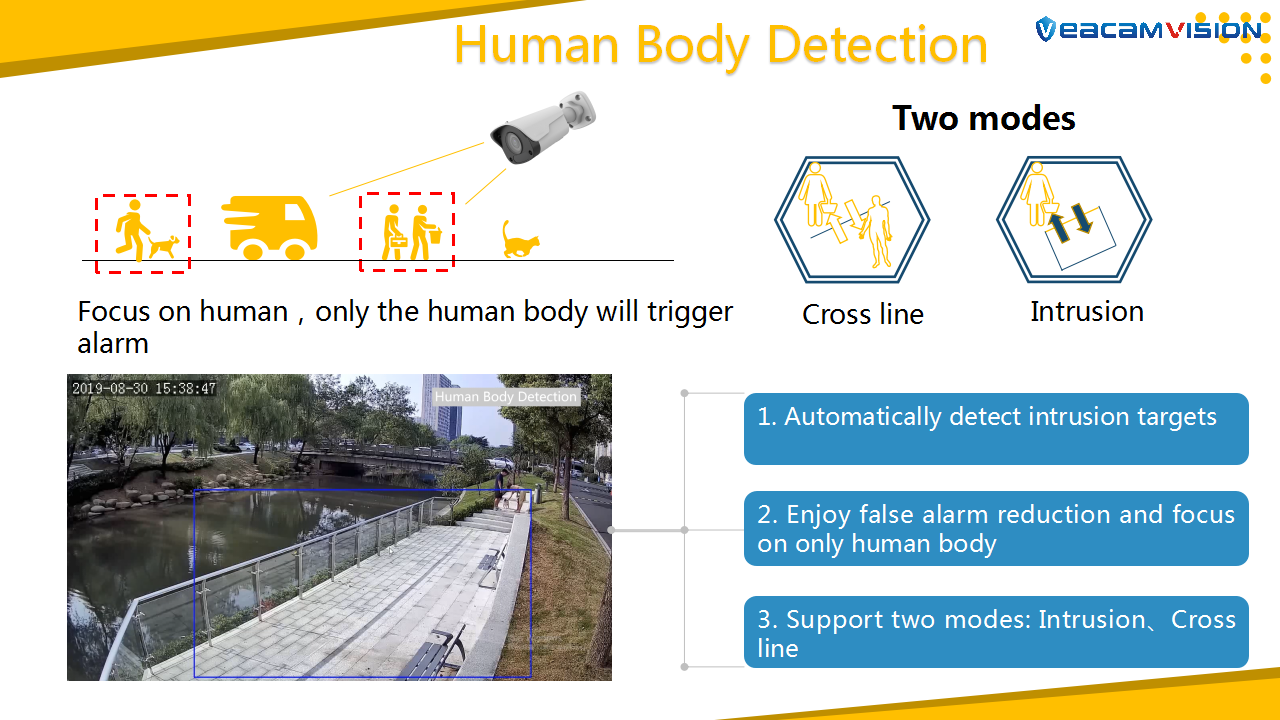

Behavior Detection

Intrusion, Human Body Detection, Motion detection, Tampering alarm

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL,QoS

Compatible Integration

ONVIF(Profile S, Profile T), API

Client

Guard Viewer

guardstation

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

Network

10/100M Base-TX Ethernet

Certifications

Certifications

CE: EN 60950-1

UL: UL60950-1

FCC: FCC Part 15

General

Power

12 V DC±25%, PoE (IEEE802.3 af)

Power consumption: Max 5.5W

Dimensions (L × W × H)

167.3×62.9×62.7mm (6.6”×2.5”×2.5”)

Net Weight

0.45kg (0.99lb)

Material

Metal

Working Environment

-30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing)

Strorage Environment

-30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing)

Surge Protection

2KV

Ingress Protection

IP67

Reset Button

Supported
