Features:


1080P Battery Outdoor Camera

Built-in 4G module, Steble 4G signal

2.0MP, 1080P

IP 66 Waterproof

Online remote view through APP

Two-way audio

Max support 128G TF card

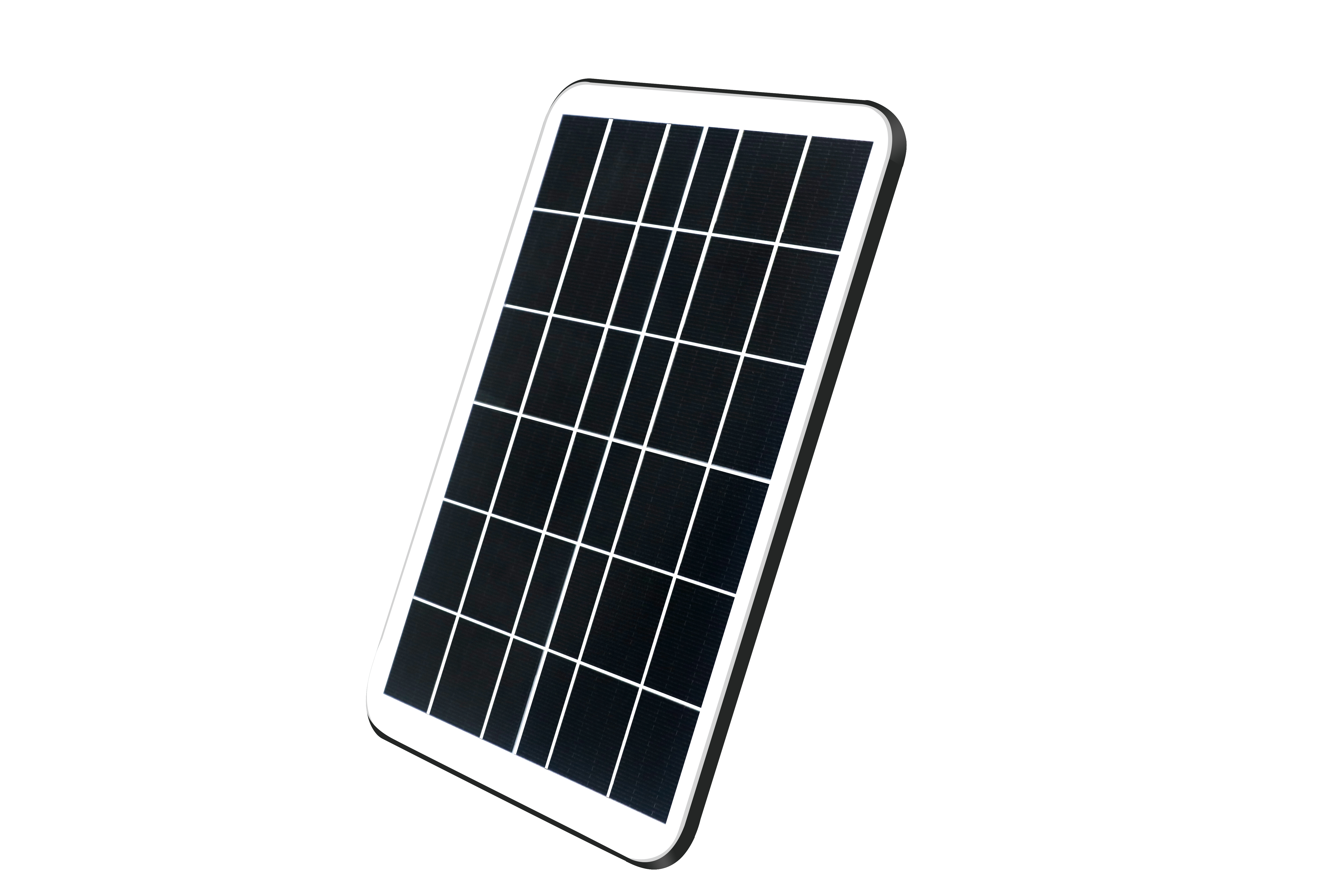

With 8W solar panel

Built-in 10200mA 18650 battery


sales@veacam.com
  • Details
  • Specification
  • Drawing
  • Enquiry
  • Recommend


1) The solar charging camera's outer casing is made of plasticWaterproof grade IP66

2) The camera adopts precision processing technology with good sealinghigh sensitivity waterproof ,and it can be used both indoors and outdoors.

3) The camera is powered by three 18650 polymer lithium batteries with a total capacity of 10200 mAh, and is charged by the upper solar panel and the external solar panel.

4) Ultra-low power consumption, super long time standby, and intelligent power saving function, standby time more than 150 days;

5) Charging by solar energy, the equipment can be maintained used without maintenance throughout the year

6) Uses 1/3 high-definition photosensitive chip; Picture resolution: 1080p, 2MP;Clear and delicate picture quality  , good color reproduction

7) With ICR double filter switcher, automatic color turn black, built-in 2Pcs LED low power infrared lamp, can effectively improve the night vision sharpness;

8) High power WiFi module built into the equipment, external professional customized WiFi antenna, stronger receiving WiFi signal stability, do not drop the line,distance is far, no drop.

9) Radar function: After setting, the human body is detected, and the camera can immediately push the alarm information to the mobile APP.

10) Remote wake-up function, PIR alarm push function, mobile phone app response in time, anytime to see;

11) Built-in pickup, horn, users can monitor through the mobile phone app, and can realize real-time remote video voice intercom;

12) Using High-performance DSP codec chip, the host can deal with a variety of complex situations, rapid response;

13) Good experience of low-power equipment dedicated app, simple operation, full-featured, product settings can be set through the mobile phone app;

14) Supports maximum 64G TF card storage, or select cloud storage to meet different customer requirements. Up to 160 hours of recording and automatic overlay can be set, and you can View alarm video on your phone APP

15) Product support network recording, after configured WIFI, such as network interruption, PIR alarm can be normal triggered and recorded, connected to the network, you can read the recording information;

16) Professional factory production;


Operating system

Linux

Image sensor

1/3 million pixel CMOS

Minimum illumination

Color 0.6 lux@f1.2, black and white 0.08 lux@f1.2,0 Lux ir Open

Day and night mode

Ir-cut Double Filter Automatic switching

Lens

3.6MM million HD lens

Video compression

H.264, support dual code flow

Video mode

HD/SD

Maximum image size

Main stream 1920x1080; sub-code stream: 640x480;

Resolution

1080P: 2MP

Frame rate

25 Frames

Audio coding

G726, G711, AAC, MP3 format, 8K sampling rate, support echo cancellation function

Audio input

Built-in mic

Audio output

Internal speaker

Real Standby

Built-in MCU, support true standby function, support infrared, key, Gpio alarm wake-up main system; system standby power consumption 60uA

Wireless network

2.4GHzIEEE 802.11b/g/n

Storage Features

Support Micro SD card storage, Max 64G

Intelligent Alarm

Radar Infrared Sensor alarm, effective distance of 10 meters

Infrared lamp

2Pcs LED light, wavelength 850nm, effective distance of 10 meters

Battery

10200 mah polymer lithium battery, charge voltage: 5v2a

Standby time

150 days

Power

0.75W (work) 0.0025W (standby)

Working environment

10°c~60°c/20%~85% (non condensation)
