Features:

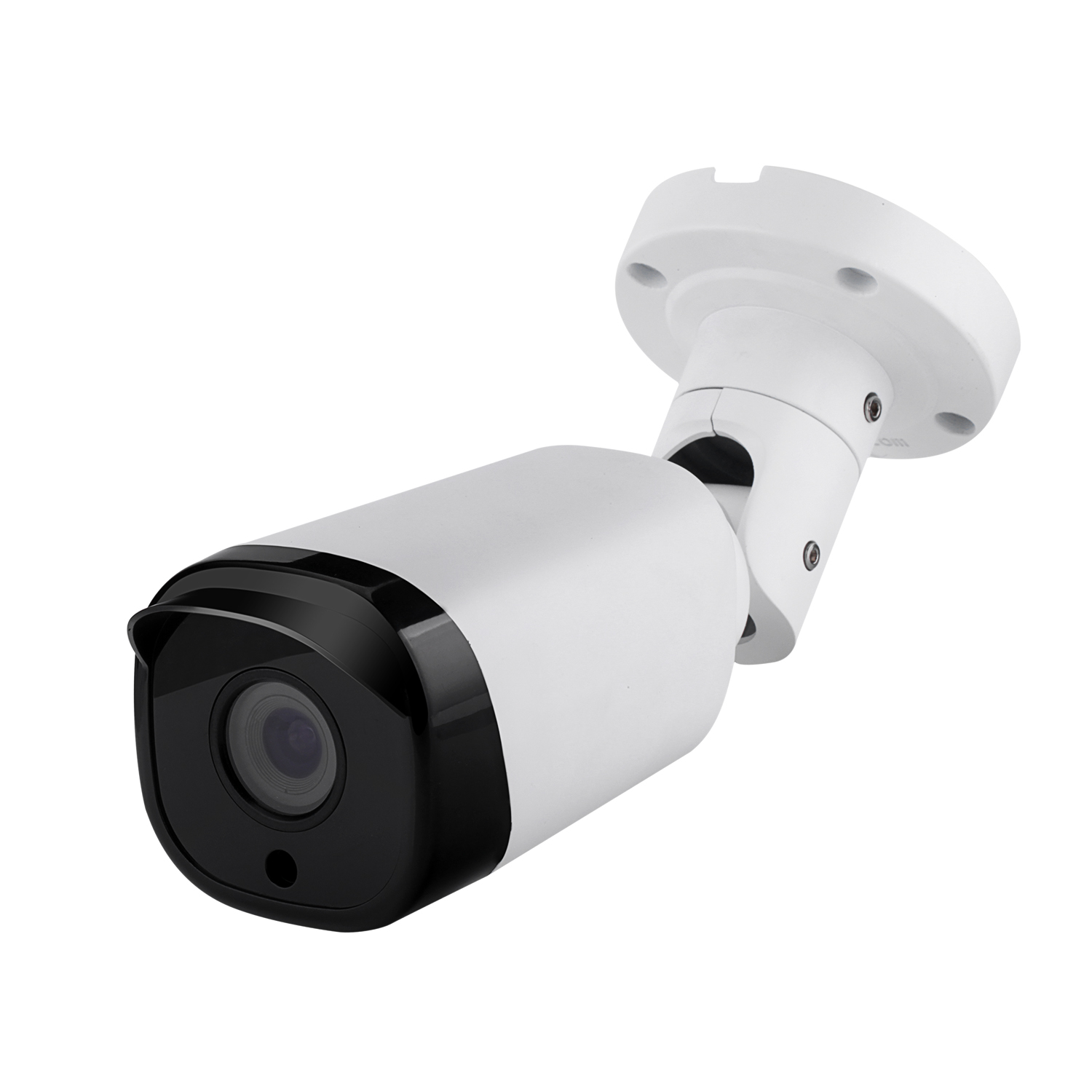

Waterproof IR Camera

2.8-12mm Manual Zoom Lens

4PCS IR ARRAY LED,40M IR;

Water Resistant Rate:IP66

sales@veacam.com
  • Details
  • Specification
  • Drawing
  • Enquiry
  • Recommend

1.SMD Led

Latest Technical to Improve the Image Clarity from 88% ~ 95%


2.WHat’ s TRUE WDR (SENSOR WDR)?

True WDR is a sensor-based technology, camera with this technology can produce images with an extremely wide dynamic range. The WDR image sensor can capture several images with short and long exposures, then combining them into a single frame. True WDR can be adjusted using three pre-set levels (Low/Mid/High) according to the lighting conditions. Proper calibration of WDR level is essential to achieving the best result –setting the WDR level too low may not produce satisfying visibility, while setting the WDR level to high may lead to washed out images.

3.COMPARISON BETWEEN D-WDR, WDR, BLC

Difference

Digital WDR

True WDR

BLC (Backlight compensation)

Technology

Adjusts the gamma (Y) value to enhance dark areas

Combines long and short exposures into one frame

Increase the level of exposure for the entire image

Pros

Good quality image

Best quality image

Object of interest is clear

Cons

Image may be slightly washed out

May have minor color restoration problem or color dispersion

Overexposure in brightly lighted areas






4.StarLight solution makes darkness totally visible !

Sony newest Starvis CMOS image sensor (IMX290/291)hat widely used in starlight HD analog /network cameras, it can capture Full HD 1080p resolution video with vivid color and high quality at 60 frames per second, ideally suitable for the high-speed motion scenes.

In complete darkness condition (<= 0.001 Lux), using the Infrared lighting to capture video is the common solution to meet the night video surveillance needs, however, the surveillance camera only can capture B/W image; some cameras may use the white lighting to achieve color video surveillance at night, but the result is not satisfied because of the limitation on illumination distance and angle. Using and deploying the Star-light surveillance cameras can effectively solve the above deficiencies of night video surveillance applications, can fully meet the requirement of night surveillance applications.


Model NO.

VCV40KF10

VCV40KF20A

VCV40KF20

VCV40KF20L

VCV40KF20W

VCV40KF20WAF

VCV40KF20AFV

VCV40KF30

VCV40KF40V

VCV40KF40VAF

VCV40KF40S

VCV40KF40SAF

Video Output Mode

AHD/CVI/TVI/ CVBS

AHD/CVI/TVI/ CVBS

AHD/CVI/TVI/CVBS

AHD/CVI/TVI/ CVBS

AHD/CVI/TVI/ CVBS

AHD/CVI/TVI/ CVBS

AHD/CVI/TVI/ CVBS

AHD/CVI/TVI/ CVBS

AHD/CVI/TVI/ CVBS

AHD/CVI/TVI/ CVBS

AHD/CVI/TVI/ CVBS

AHD/CVI/TVI/ CVBS

Chipset

Image Sensor

1/4" CMOS H62

1/2.7"Aptina AR0237

1/2.9"SONY IMX323

1/2.8"SONY IMX291

1/2.8"SONY IMX290

1/2.8"SONY IMX290

1/2.9"SONY IMX323

1/2.8"Aptina AR0330

1/3"OV4689

1/3"OV4689

1/3"Sony326

1/3"Sony326

DSP

V20E

V30E

V30E

NVP2441H

FH8550M

FH8550M

V30E

NVP2470

FH8538M

FH8538M

FH8538M

FH8538M

Image Resolution

720P/ 960H

1080P / 960H

1080P/960H

1080P/960H

1080P/960H

1080P / 960H

1080P/960H

3MP

4MP

4MP

4MP

4MP

Effective Pixels

1280*720

1920*1080

1920*1080

1920*1080

1920*1080

1920*1080

1920*1080

2048*1536

2560*1440

2560*1440

2560*1440

2560*1440

TV System

PAL/NTSC

Electronic Shutter

1/25s~1/50,000s , 1/30s~1/60,000s

S/N Ratio

50dB

Scanning System

Progressive Scan

Lens

Focus Length

2.8-12mm

2.8-12mm

2.8-12mm

2.8-12mm

2.8-12mm

2.8-12mm

2.8-12mm

2.8-12mm

2.8-12mm

2.8-12mm

2.8-12mm

2.8-12mm

Focus Control

Manual

Manual

Manual

Manual

Manual

Auto

Auto

Manual

Manual

Auto

Manual

Auto

Lens Type

Manual

Manual

Manual

Manual

Manual

Motor Zoom

Auto Focus

Motor Zoom

Auto Focus

Manual

Manual

Motor Zoom

Auto Focus

Manual

Motor Zoom

Auto Focus

Pixels

2M Pixels

2M Pixels

2M Pixels

2M Pixels

2M Pixels

2M Pixels

2M Pixels

3M Pixels

5M Pixels

5M Pixels

5M Pixels

5M Pixels

Night Vision

Infrared LED

4pcs IR array Leds

Infrared Distance

40M

IR Status

Under 10 Lux by CDS

IR Power On

CDS Auto Control

Camera Features

Day/Night

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

OSD Menu Language

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

White Balance

Auto/Manual

Auto/Manual

Auto/Manual

Auto/Manual

Auto/Manual

Auto/Manual

Auto/Manual

Auto/Manual

Auto/Manual

Auto/Manual

Auto/Manual

Auto/Manual

Gain Control

AUTO

AUTO

AUTO

AUTO

AUTO

AUTO

AUTO

AUTO

AUTO

AUTO

AUTO

AUTO

Noise Reduction

DNR

3DNR

3DNR

3DNR

3DNR

3DNR

DNR

DNR

3DNR

3DNR

DNR

DNR

Picture Adjustment

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

WDR

DWDR

DWDR

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

OSD Support

Optional

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

UTC

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

General

Housing

Metal, IP66

Bracket

YES

IR Cut Filter

YES

Operation Temperature

-10 ~ +50 RH95% Max

Storage Temperature

-20 ~ +60 RH95% Max

Power Source

DC12V±10%, 650mA

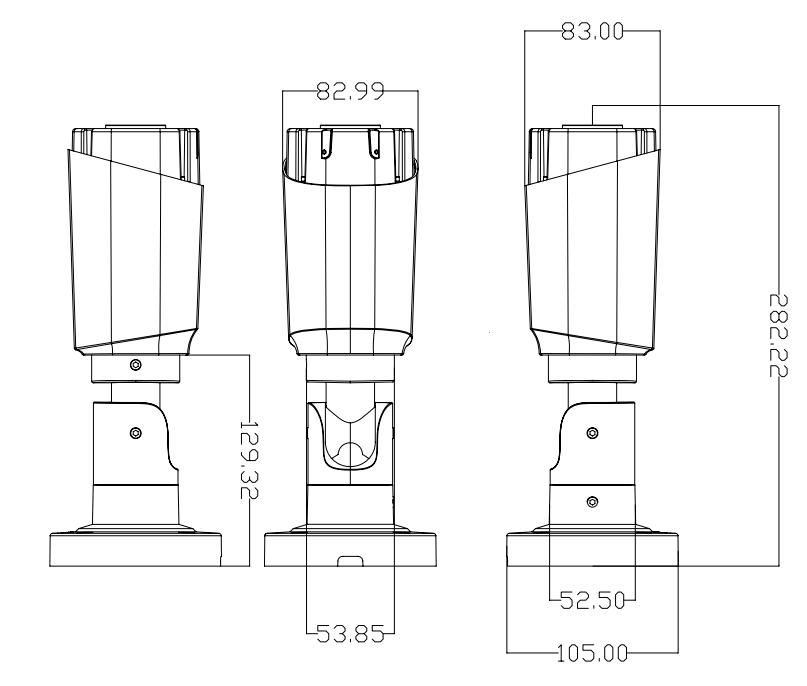

Dimension

83(W)*83(D)*283(L)

Weight
