Features:

Smoke Detector Type IP Camera

Lens:Pinhole Lens 3.6MM

Power: DC12V. POE optional

Support more than 20 languages

Mobile Phone View

Support P2P Function/DDNS

Motion DetectionFree CMS,

Support ONVIF2.4/RTSP


sales@veacam.com
  • Details
  • Specification
  • Drawing
  • Enquiry
  • Recommend

1.SMD Led

Latest Technical to Improve the Image Clarity from 88% ~ 95%




2.WHat’ s TRUE WDR (SENSOR WDR)?

True WDR is a sensor-based technology, camera with this technology can produce images with an extremely wide dynamic range. The WDR image sensor can capture several images with short and long exposures, then combining them into a single frame. True WDR can be adjusted using three pre-set levels (Low/Mid/High) according to the lighting conditions. Proper calibration of WDR level is essential to achieving the best result –setting the WDR level too low may not produce satisfying visibility, while setting the WDR level to high may lead to washed out images.

3.COMPARISON BETWEEN D-WDR, WDR, BLC


Difference

Digital WDR

True WDR

BLC (Backlight compensation)

Technology

Adjusts the gamma (Y) value to enhance dark areas

Combines long and short exposures into one frame

Increase the level of exposure for the entire image

Pros

Good quality image

Best quality image

Object of interest is clear

Cons

Image may be slightly washed out

May have minor color restoration problem or color dispersion

Overexposure in brightly lighted areas








4.StarLight solution makes darkness totally visible !

Sony newest Starvis CMOS image sensor (IMX290/291)hat widely used in starlight HD analog /network cameras, it can capture Full HD 1080p resolution video with vivid color and high quality at 60 frames per second, ideally suitable for the high-speed motion scenes.

In complete darkness condition (<= 0.001 Lux), using the Infrared lighting to capture video is the common solution to meet the night video surveillance needs, however, the surveillance camera only can capture B/W image; some cameras may use the white lighting to achieve color video surveillance at night, but the result is not satisfied because of the limitation on illumination distance and angle. Using and deploying the Star-light surveillance cameras can effectively solve the above deficiencies of night video surveillance applications, can fully meet the requirement of night surveillance applications.







Model NO.

WVCSC1E

WVCSC2

WVCSC4

Chipset

Image Sensor

1/3"AR0130

IMX323

OV4689

Main processor

HI3518E

HI3516C

Hi3516D

Resolution

960P

1080P

4MP

Effective Pixels

1305(H)*977(V)

1920(H)*1080(V)

2688(H)*1520(V)

Compression

H.264/JPEG/AVI/MJPEG

H.264/JPEG/AVI/

MJPEG

H.264/H.265/JPEG/AVI/MJPEG

TV System

PAL/NTSC

Electronic Shutter Time

Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec

S/N Ratio

≥52dB

Scanning System

Progressive

Video Output

Network

Focus Length

3.6mm

3.6mm

3.6mm

Focus Control

Fixed

Fixed

Fixed

Lens Type

Fixed

Fixed

Fixed

Pixels

2MP

2MP

5MP

Infrared LED

N/A

Infrared Distance

N/A

IR Status

N/A

IR Power On

N/A

Ethernet

RJ-45 (10/100Base-T)

Protocol

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP

ONVIF

Support ONVIF 2.4

P2P

YES, Support QR Code

POE

Optional, Support IEEE 802.3af

WIFI

N/A

Video Delay

0.3S (Within the Lan)

Main Stream 1

1280*960

@25fps

1920*1080

@25fps

2560*1440@20fps

Main Stream 2

/

/

2304*1296@30fps

Main Stream 3

/

/

1920*1080@30fps

Sub Stream 1

720*480@25fps

720*480@25fps

720*480@20fps
720*480@30fps

Sub Stream 2

/

/

/

Sub Stream 3

/

/

/

Tri Stream

/

352*288@25fps

352*288@20fps
352*288@30fps

IE Brower

IE8-11, Google Chrome, Firefox, Safari, Mac Safari

Smart Phone

iPhone, iPad, Android, Android Pad

Camera Features

Day/Night

Color/ B&W (IR-CUT )

Image Config

Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control)

Corridor Pattern

/

/

Support

Defog  Mode

Support

Support

Support

BLC

Support

Support

Support

HDR

/

/

/

WDR

Support

Motion Detection

Support

Privacy  Masking

3 Rectangular Zone

Recording Mode

NVR/NAS/CMS/Web

Language

Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands

General

Housing

Plastic

Anti-cut Bracket

Optional

IR Cut Filter

YES

Operation Temperature

-10 ~ +50 RH95% Max

Storage Temperature

-20 ~ +60 RH95% Max

Power Source

DC12V 120mA

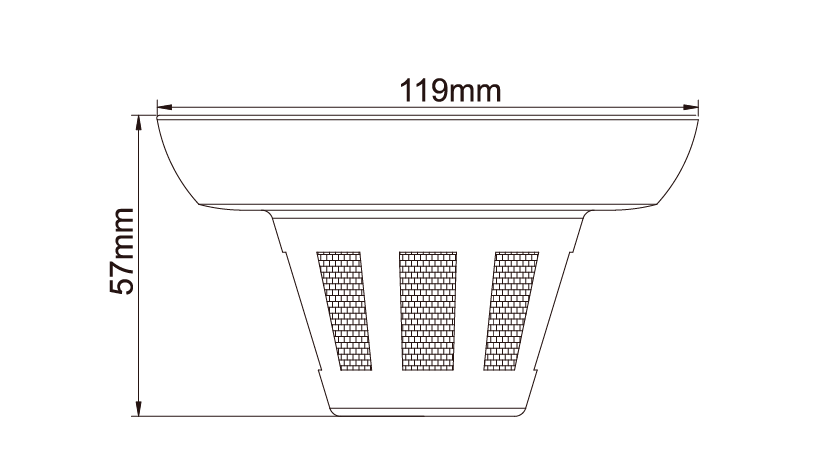

Dimension

120(W)*60(H) mm

Weight

350g
