Features:

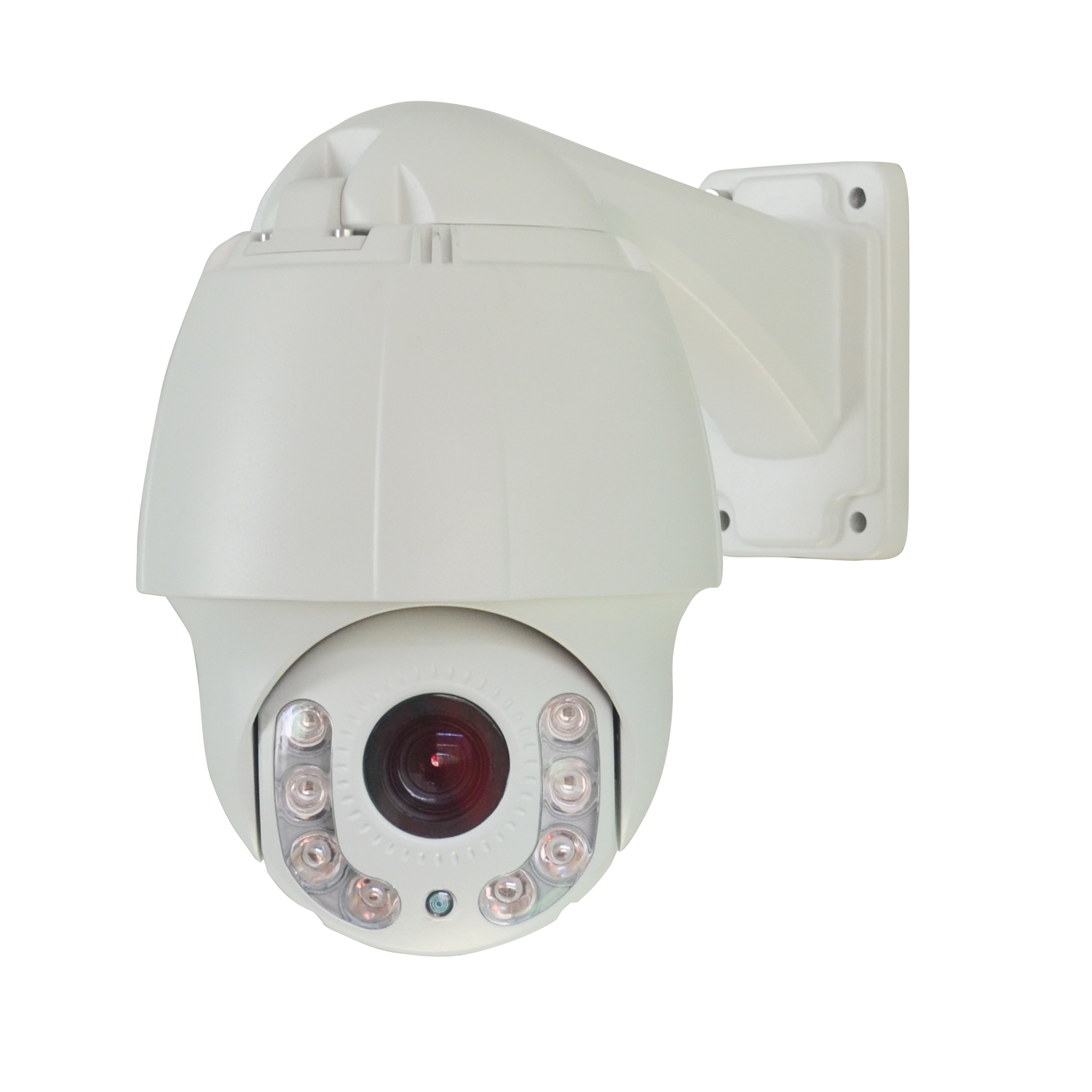

*4.5" HD-IP High Speed Dome Camera
*Weatherproof Outdoor IP66
*9pcs LED ,IR distance 60M-80M
*Pan Range: 0°~360° Continue; Tilt Range: 0°~93° Flip
*Pan Speed: 0-200°/sec; Tilt Speed: 0-100°/sec
*TCP/IP, HTTP, FTP, RTSP Support P2P Support

sales@veacam.com
  • Details
  • Specification

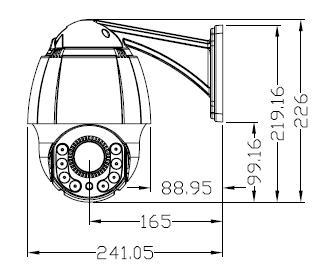

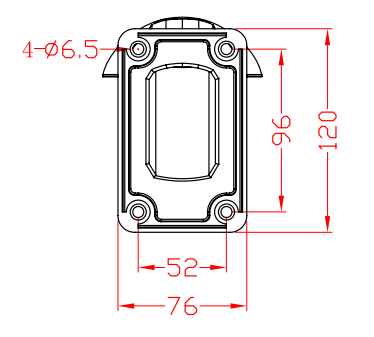

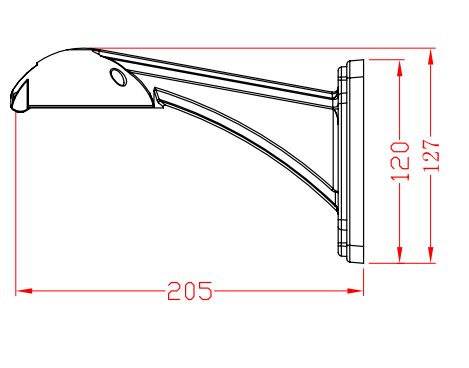

  • Drawing
  • Enquiry
  • Recommend



Camera
module NO WVCPTZ45HB10X2 WVCPTZ45HB10X5
Sensor 3516E+SONY307 3516D+AR0521
Optical Zoom 10X 10X
Effective pixels 2.0MP 5.0MP
Output Pixel 2592x19442592x15202304x12961920x10801280x9601280×720720×576640×480
Iris F2
Angle of view FOV H: 47°W)~5.3°T V35.6°W)~3.96°T
Min. illumination Color: 0.01 Lux   B/W: 0 Lux
BLC Support
WB Indoor/Outdoor/Auto/Manual
D/N IR-CUT
2D NR Support
S/N Ratio ≥50dB
Dome
Communications Protocol TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P
Software Control IE, CMS, Management Platform
Video compression H.264/H.265/M-JPEG
Rotation Range 0~200°/S
Rotation Speed 0~100°/S
Auto Flip Horizontal 180°, Vertical 93°
Preset Points 220pcs preset( Dwell time 01-60s interval available)
A-B Scan User programmable (scan speed 1-64 levels setting available )
Guard Tours 3 groups (Max.16 points, dwell time user selectable)
PWR On Action Memory/Tour 1/360° scan/A-B scan/Park 1/None
Operating Temperature -40~+60
Power DC12V  4A / (AC24V 3A optional )
Power Consumption ≤ 25W
Auto Control IR LED PWM
IR distance Up to 60~80 meters
LEDs 9 PCS Array 42Mil IR LED
Lightning Protection Transient voltage 6000V
Communication mode RS485 (+/-)
Connection Coaxial Cable
Size/Weight 2.65KGN.W,4.9KGG.W
Related validation IP66,CE,FCC,RoHs
Package SizeCM 25*21.5*41
