Features:

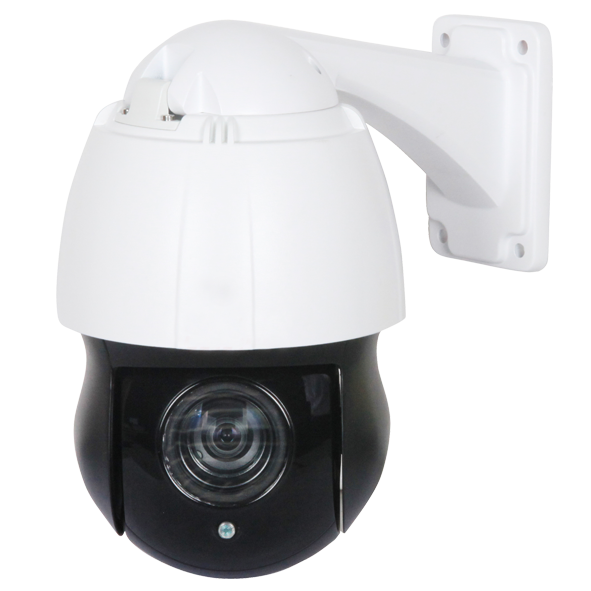

*4.5"Total Metal body construction,IP66 rate protection

* 6 pcs LED+3pcs Laser,IR distance up to 150~180M;

* High definition 2MP,/5MP  22X/36 Zoom

* ONVIF2.4

* Intelligent IR illumination & power consumption is variable, dependant the zoom facto

*Seamless docking with Haikang, dahua, CMS(XM),UC2, metavision

AEVISION, Milestone and other platforms.

*Compatible with Milestone and AXXON platform

*Optional Function: POE, SD Card Slot,Alarm,Audio

sales@veacam.com
  • Details
  • Specification

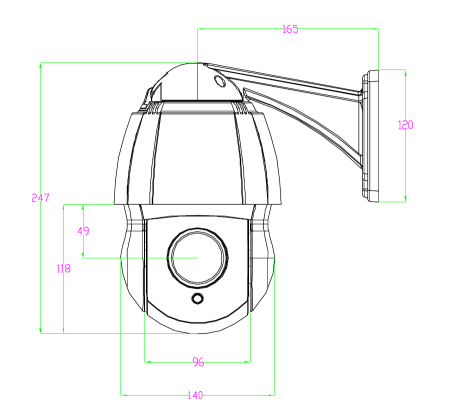

  • Drawing
  • Enquiry
  • Recommend



Camera
module NO WVCPTZ45HA22X2 WVCPTZ45HA22X5 WVCPTZ45HA36X2 WVCPTZ45HA36X5
Sensor 3516E+SONY307    3516D+AR0521  3516A+SONY327 3516A+SONY335
Optical Zoom 22X 22X 36X                         36X
Effective pixels 2.0MP 5.0MP 2.0MP 5.0MP
Output Pixel 2592x19442592x15202304x12961920x10801280x9601280×720720×576640×480
Iris F1.6 ~F2.7
Angle of view FOV H51.8°W)~5.86°T   V39.1°W)~4.4°T
Min. illumination Color: 0.1Lux   B/W: 0.01Lux
BLC Support
WB Indoor/Outdoor/Auto/Manual
D/N IR-CUT
2D NR Support
S/N Ratio ≥50dB
Dome
Communications Protocol  TCP/IP, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, UDP, IGMP
Storage (optional) One SD/SDHC card
Software Control IE, CMS,UC  Management Platform
Mobile View(optional) Support Windows, Symbian, iPhone platform smartphone
Preset Points 220
Guard Tours 3 groups
Guard Points Max.16 points, dwell time user selectable
Operating temperature Indoor: 0°~ +40°             Outdoor: -40°~ +60°
Operation menu Multiple languages for OSD menu, English, Spanish etc
Pan and Tilt position display Support
Auto Control IR LED PWM
Support ambient light detection IR illumination on 1-15 grades selectable;
LEDs 6pcs
IR distance up to 60 meters
Support ambient light detection IR illumination on 1-9 grades selectable;
Humidity ≤95% Non Condensing
Power  DC12V 2A/3A
Consumption < 22W
Lightning Protection Transient voltage 6000V
Communication mode RS485 (+/-)
Connection Coaxial Cable
Size/Weight 1.65KGN.W,.2.38KGG.W
Related validation IP66,CE,FCC,RoHs
Package SizeCM 18.5*18.5*28.5
Weight  2.1KG
6Pcs 1BoxBox size 58*40*31
6Pcs 1BoxBox Weight  13.5KG
