Features:

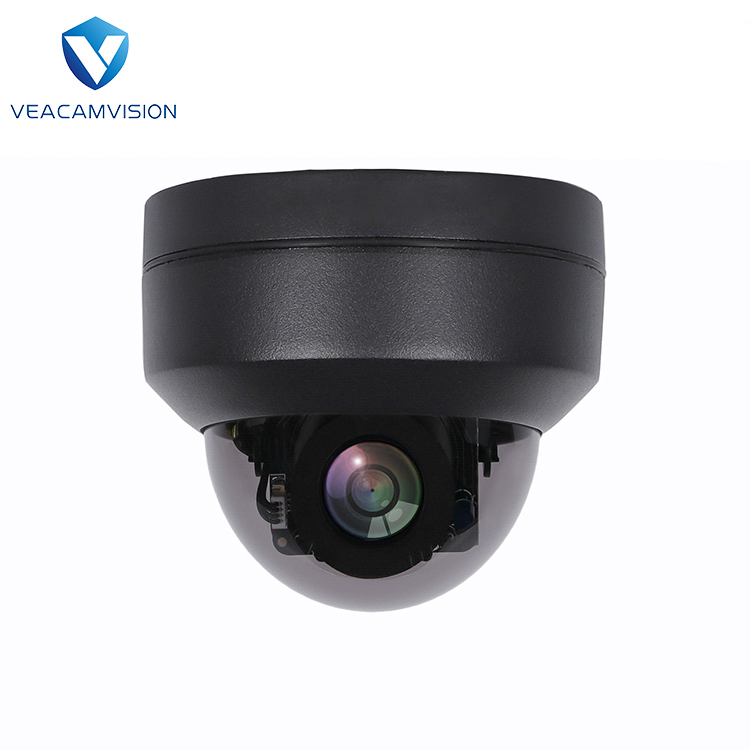

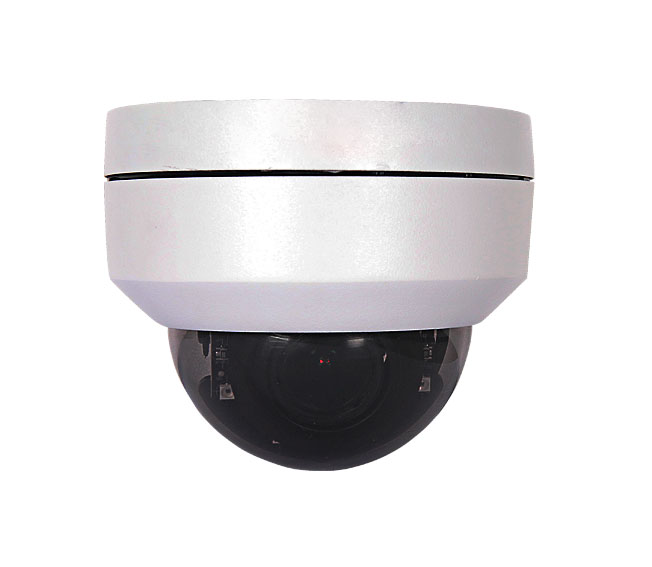

7 inch High mini Speed Dome IP outdoor camera

*1/3" CMOS,2.0 or 4.0 Megapixels

*Powerful 20x optical zoom

*Full Aluminium Alloy Wiper

*120M IR Distance

*Quickly Installation Structure

*IP 66 all-environments protection



sales@veacam.com
  • Details
  • Specification

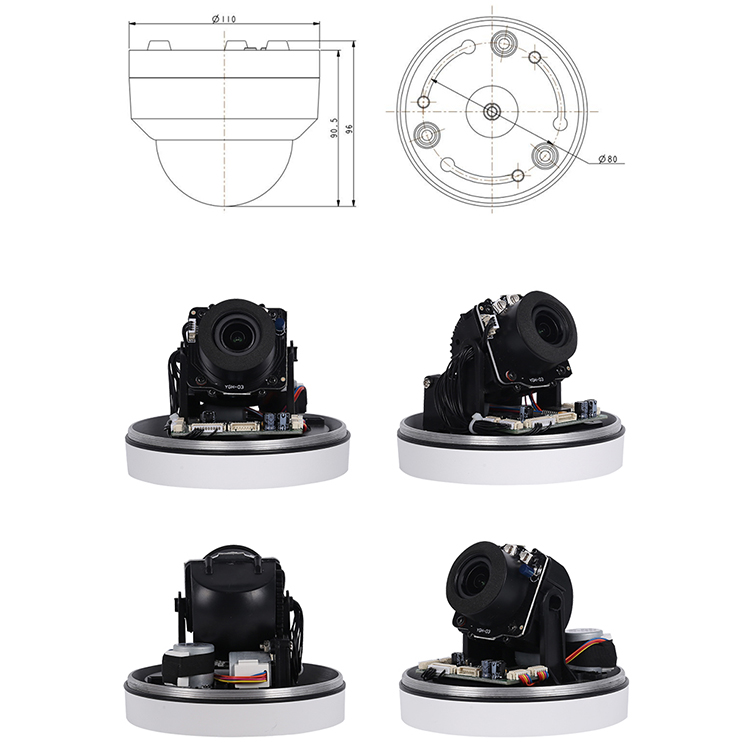

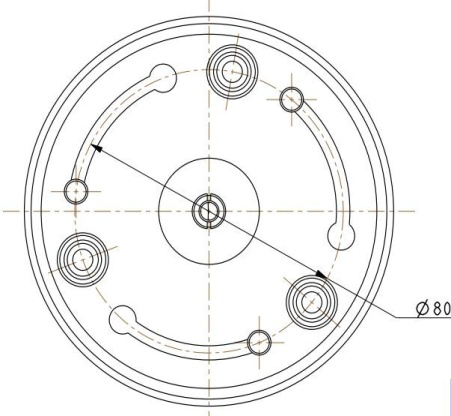

  • Drawing
  • Enquiry
  • Recommend

MODLE

WVCIRSDW20X20H

WVCIRSDW20X40H

Sensor

HI3516C+SONY323 CMOS

HI3516D+ OV4689 CMOS

Video Compression

H.264 High profile / M-JPEG

H.265 Main Profile / H.264 High profile / M-JPEG

Effective pixels

1080P(1080X1920)

2592x1944

Total pixels

2.0 Megapixels

4.0 Megapixels

Output Pixel

1920*1080@30fps,1920*1080@25fps,

1280*720@60fps,1280*720@50fps

2304x1296@30fps2592x1520@22fps

2592x1944@15fps

Lens

20X(f=4.7-94mm)

Iris

F1.6 ~F1.8

FOV

6.7° ~67°

Min. illumination

Color: 0.01 Lux   B/W: 0 Lux

D/N

IR-CUT

BLC

Auto

WB

Auto

S/N Ratio

50dBAGC OFF

TF Card

Support

Audio frequency

Optional

Audio compression standard

G711PCM

Communications Protocol

TCP/IPHTTPNTPIGMPDHCPUDPSMTPRTPRTSPARPDDNSDNSHTTPSP2P

Compatibility

IE, CMS, HCMS,HIKVISION,UC ONVIF

Mobile View(optional)

Support Windows, Symbian, iPhone platform smartphone

Preset Points

256

Pan/Tilt Range

Horizontal: 0°~350°endless, Vertical: -10°~90° auto  Flip

Manual Control Speed

0.01°-350°/s

Preset Speed

350°/s

Pattern Scan

4 groups

Guard Tours

4 groups

Guard Points

Max.16 points, dwell time user selectable

Operating temperature

Indoor: 0°~ +40°

Pan and Tilt position display

Support

Support ambient light detection

IR illumination on 1-15 grades selectable;

LED

42X8PCS

IR distance

up to 100 meters

Support ambient light detection

IR illumination on 1-9 grades selectable;

Humidity

75% Non Condensing

Power

 DC12V 2A

Consumption

< 10W

Lightning Protection

Transient voltage 6000V

Interface

1 channel network interface, power input

Size/Weight

5.5KG
