Model

VCXVR-812UA2S

Video/Audio Input

Analog Video Input

8-ch, BNC

IP Video Input

4-ch(only IP up to 12ch), each channel up to 4K

Supported Analog Camera Types

Support AHD input:

8MP@15fps(channel1-channel2)

5MP@20fps

4MP@30fps

3MP@30fps(channel1-channel2)

1080P@30fps

720P@60fps

Support TVI input:

8MP@15fps(channel1-channel2)

5MP@20fps

4MP@30fps

3MP@20fps(channel1-channel2)

1080P@30fps

720P@60fps

Support CVI input:

8MP@15fps(channel1-channel2)

4MP@30fps

1080P@30fps

720P@60fps

Support CVBS input

Audio Input

1-ch, RCA

Two-way Audio

1-ch, RCA

Network

Incoming Bandwidth

56Mbps

Outgoing Bandwidth

64Mbps

Remote Users

128

Protocols

TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

CVBS Output

1-ch, BNC

VGA Output

1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

HDMI Output

1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Audio Output

1-ch, RCA

Synchronous Playback

8-ch

Encoding

Recording Resolution

8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CIF/CIF

Recording Frame Rate

Main stream:

8MP Lite@8fps(channel1-channel2)

5MP Lite@12fps

4MP Lite@15fps

3MP@15fps(channel1-channel2)

2MP@15fps

720P@30fps

Sub stream:

D1@30fps(Max)

Hard Disk

SATA

2 SATA interfaces

Capacity

up to 6TB for each HDD

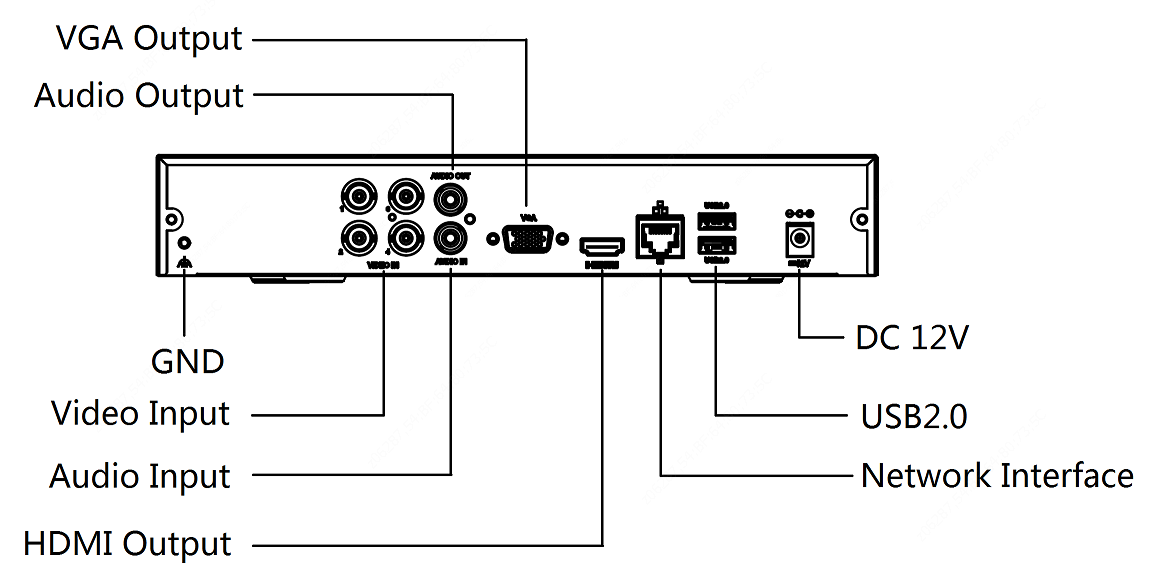

External Interface

Network Interface

1 RJ45 10M/100M self-adaptive Ethernet Interface

USB Interface

Rear panel: 1 x USB2.0, Front panel: 1xUSB2.0

Serial Interface

1 x RS485

General

Power Supply

12V DC

Power Consumption: ≤ 8 W( without HDD )

Working Environment

-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)

Dimensions(W×D×H)

380mm ×315mm× 53mm (15" × 12.4"×2.1")

Weight ( without HDD )

≤1.9 Kg ( 4.19lb )
