Features:

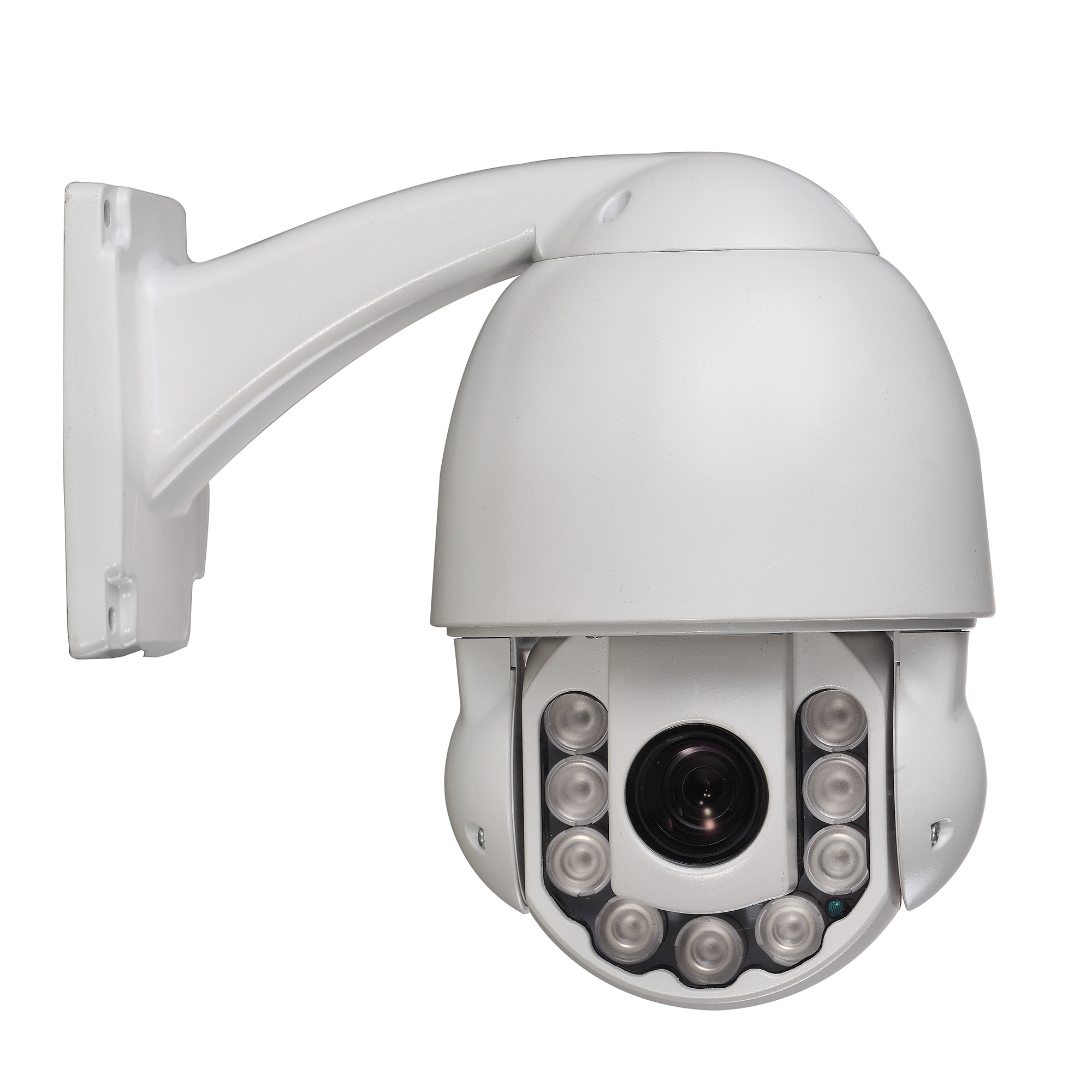

4.5 inch High mini Speed Dome HD outdoor camera
*1/3" CMOS,2.0 or 4.0 Megapixels, 10X optical zoom

*Total Metal body construction

*HD-4 IN 1 output

*IR distance 80M

*IP 66 all-environments protection


sales@veacam.com
  • Details
  • Specification
  • Drawing
  • Enquiry
  • Recommend

MODLE

VCIRSDB10X20H

VCIRSDB10X40H

Sensor

NVP2441+SONY323

FH8538M+326

Video Output Mode

AHD/CVI/TVI/ CVBS

AHD/CVI/TVI/ CVBS AHD/CVI/TVI/ CVBS

Effective pixels

1080P(1080X1920)

2592x1944

Total pixels

2.0 Megapixels

4.0 Megapixels

Output Pixel

1920*1080@30fps,1920*1080@25fps,

1280*720@60fps,1280*720@50fps

2304x1296@30fps2592x1520@22fps

2592x1944@15fps

Lens

10X optical zoom f=5mm(W) ~ 50mm(T)

Iris

F1.6 ~F1.8

FOV

6.7° ~67°

Min. illumination

Color: 0.01 Lux   B/W: 0 Lux

D/N

IR-CUT

BLC

Auto

WB

Auto

S/N Ratio

50dBAGC OFF

TF Card

Support

Audio frequency

Optional

Audio compression standard

G711PCM

Communications Protocol

TCP/IPHTTPNTPIGMPDHCPUDPSMTPRTPRTSPARPDDNSDNSHTTPSP2P

Compatibility

IE, CMS, HCMS,HIKVISION,UC ONVIF

Mobile View(optional)

Support Windows, Symbian, iPhone platform smartphone

Preset Points

128

Pattern Scan

4 groups

Guard Tours

4 groups

Guard Points

Max.16 points, dwell time user selectable

Operating temperature

Indoor: 0°~ +40°

Pan and Tilt position display

Support

Support ambient light detection

IR illumination on 1-15 grades selectable;

LED

16X9PCS

IR distance

up to 80 meters

Support ambient light detection

IR illumination on 1-9 grades selectable;

Humidity

75% Non Condensing

Power

 DC12V 2A

Consumption

< 10W

Lightning Protection

Transient voltage 6000V

Interface

1 channel network interface, power input

Size/Weight

2.5KG
