Features:

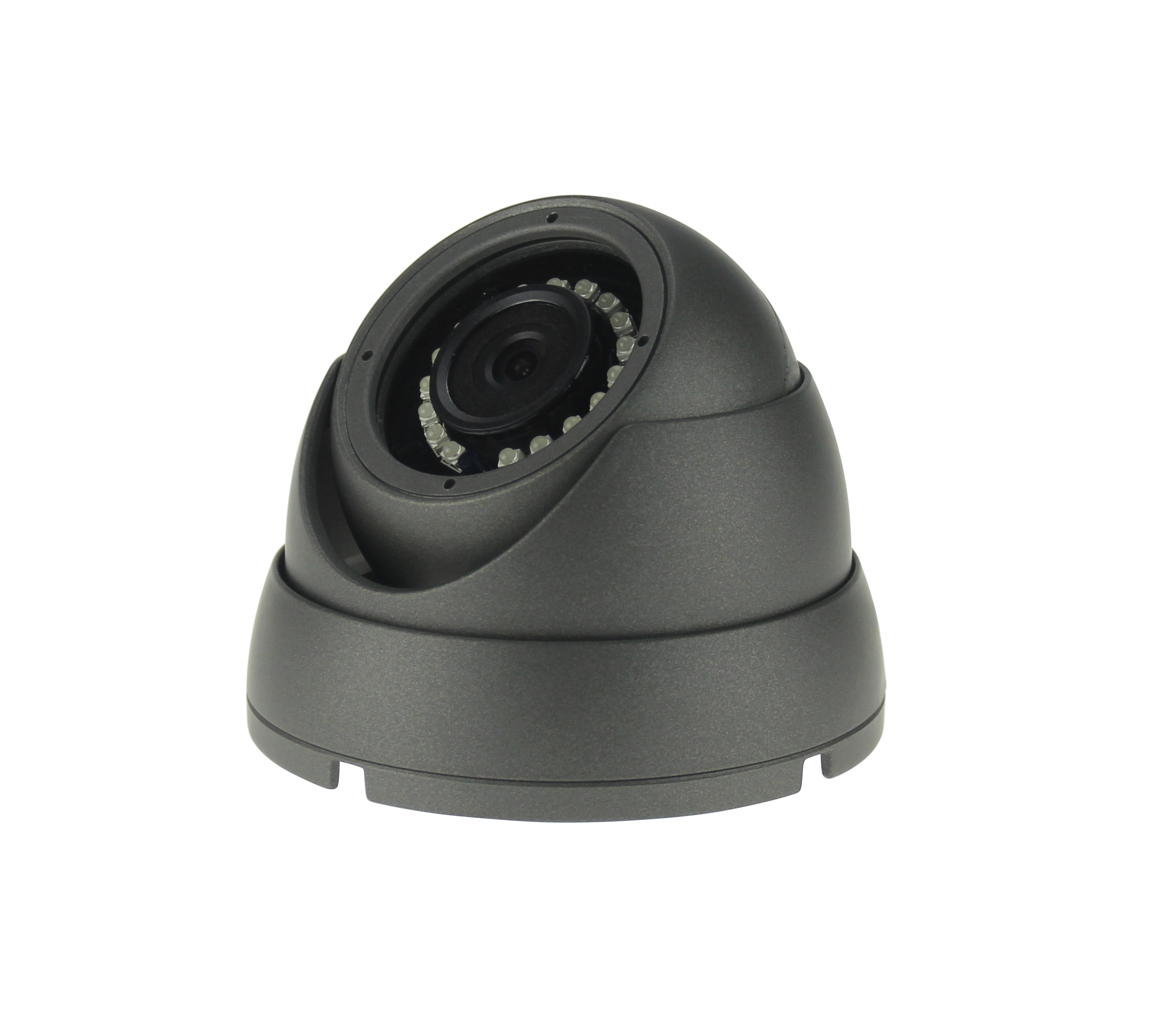

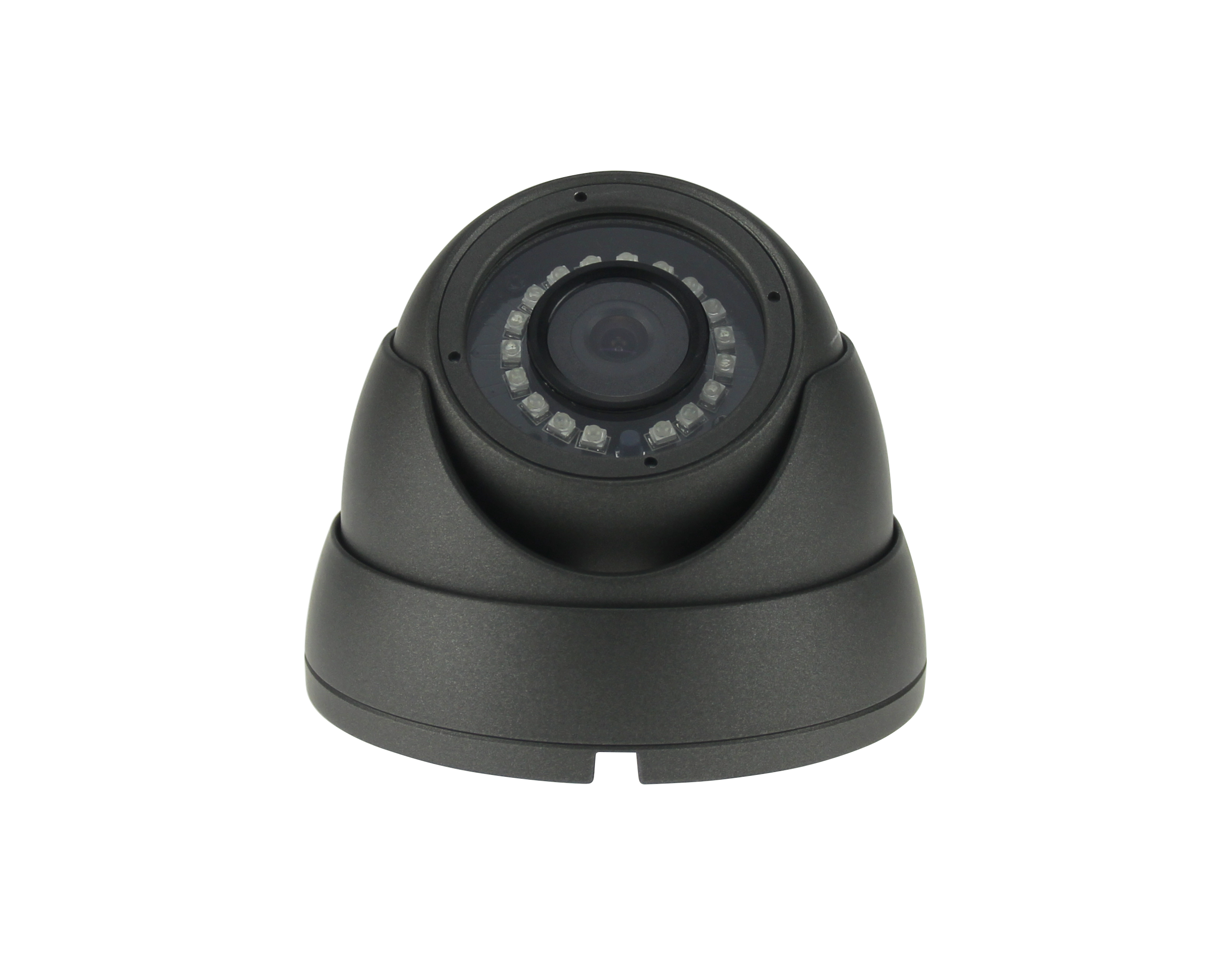

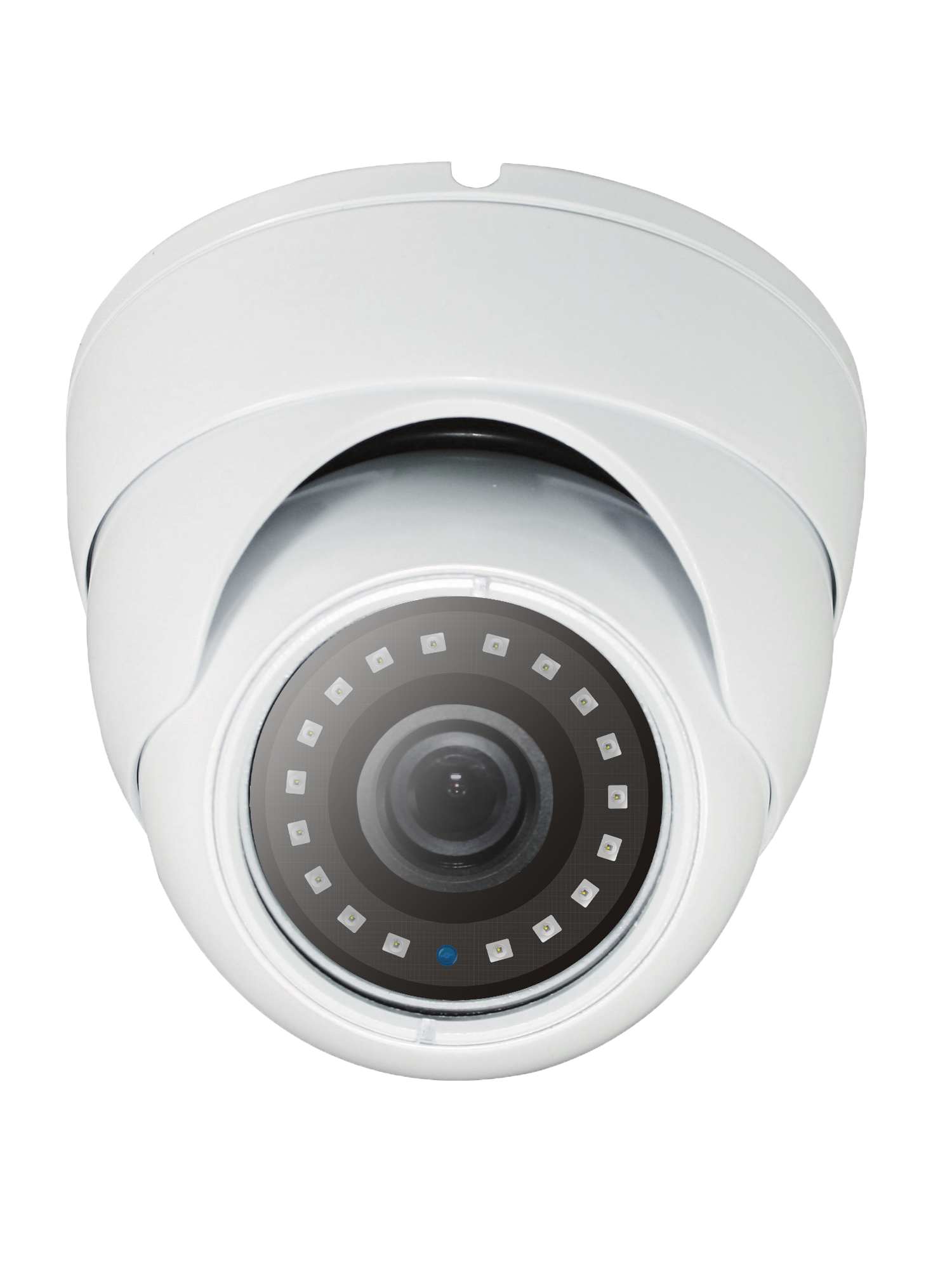

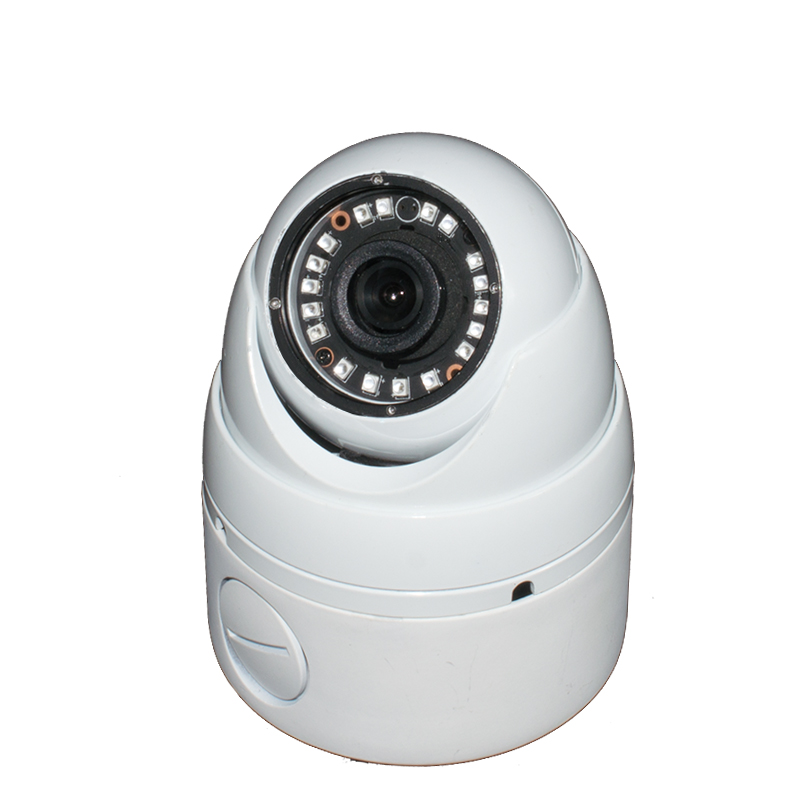

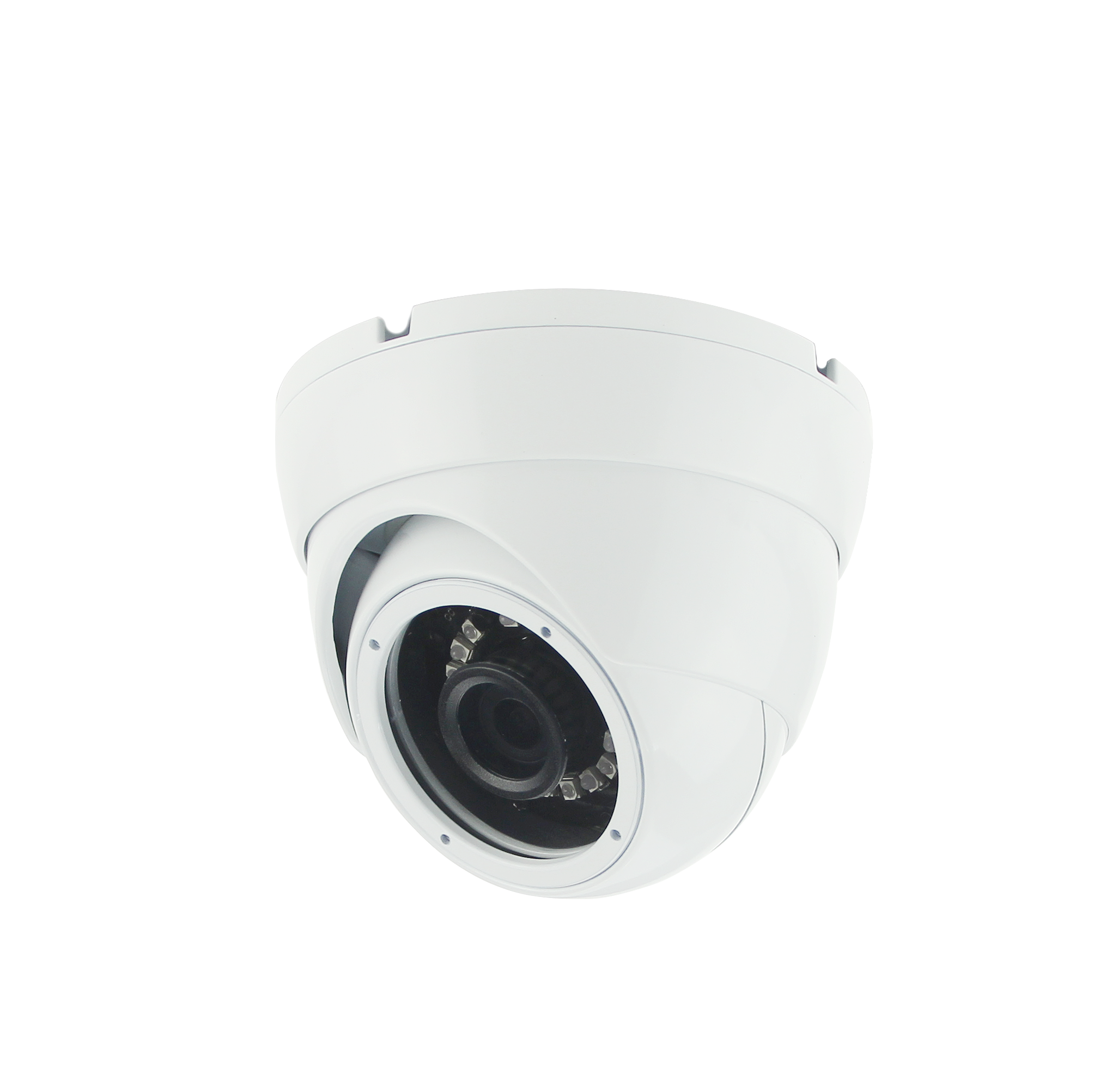

2.5" Vandalproof Dome Camera

3.6mm Lens,(2.8mm Optional)

LED: 5X23pcs

OR 18PCS SMD LEDS

20m IR Range

IP66 Waterproof Rating

sales@veacam.com
  • Details
  • Specification

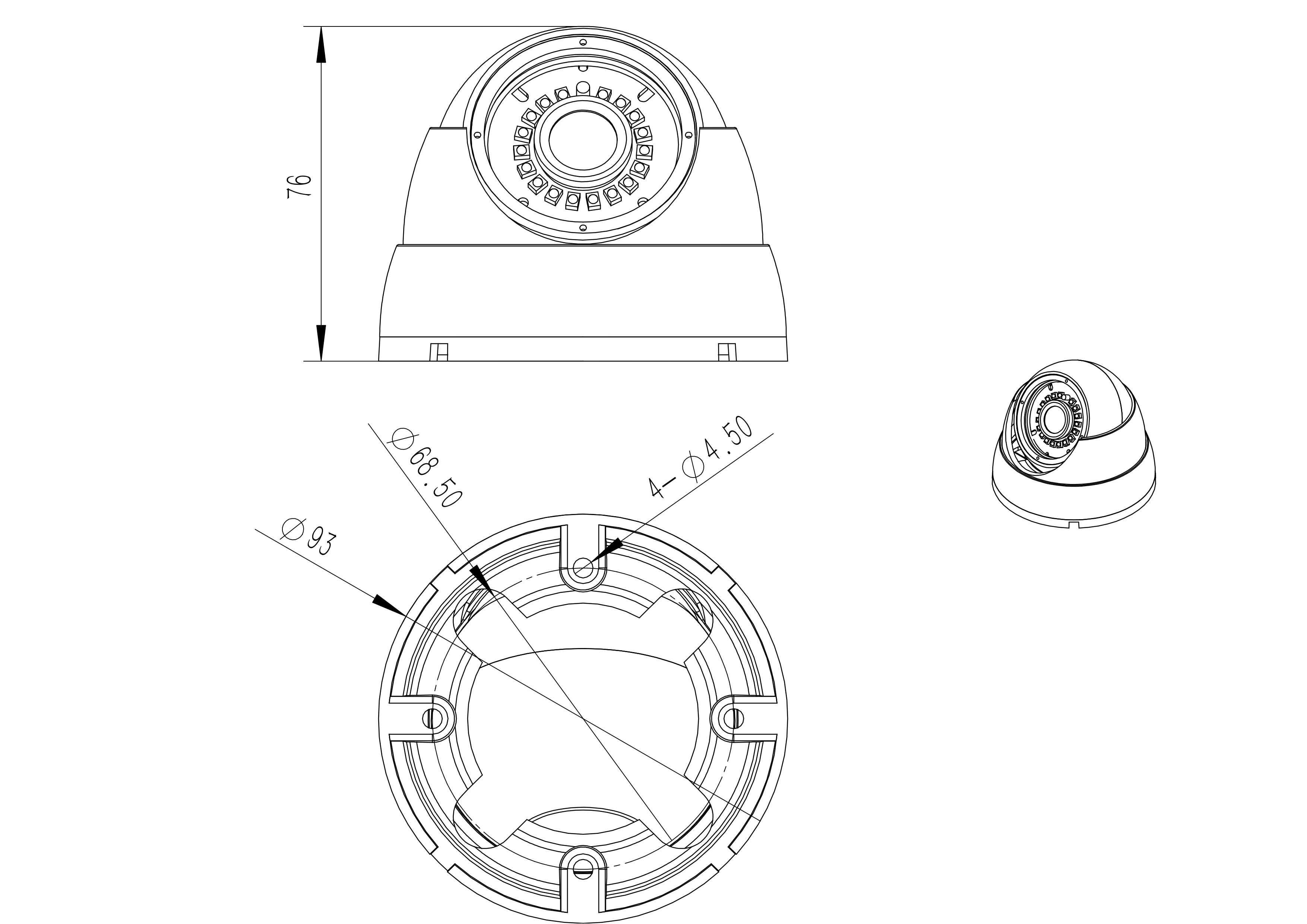

  • Drawing
  • Enquiry
  • Recommend

1.SMD Led

Latest Technical to Improve the Image Clarity from 88% ~ 95%

2.WHat’ s TRUE WDR (SENSOR WDR)?

True WDR is a sensor-based technology, camera with this technology can produce images with an extremely wide dynamic range. The WDR image sensor can capture several images with short and long exposures, then combining them into a single frame. True WDR can be adjusted using three pre-set levels (Low/Mid/High) according to the lighting conditions. Proper calibration of WDR level is essential to achieving the best resultsetting the WDR level too low may not produce satisfying visibility, while setting the WDR level to high may lead to washed out images.



Veacam supplies mini spy cameras as small as the size of a quarter which can be hidden in any object that the customer chooses.

And hidden surveillance cameras, hidden spy cameras, and covert cameras, are often the best type of camera when the goal is to monitor people and property secretly.


Model NO.

VCDWA10

VCDWA20A

VCDWA20

VCDWA20L

VCDWA20W

VCDWA20WAF

VCDWA20AFV

VCDWA30

VCDWA40V

VCDWA40VAF

VCDWA40S

VCDWA40SAF

Video Output Mode

AHD/CVI/TVI/CVBS

AHD/CVI/TVI/CVBS

AHD/CVI/TVI/CVBS

AHD/CVI/TVI/CVBS

AHD/CVI/TVI/CVBS

AHD/CVI/TVI/ CVBS

AHD/CVI/TVI/ CVBS

AHD/CVI/TVI/CVBS

AHD/CVI/TVI/CVBS

AHD/CVI/TVI/ CVBS

AHD/CVI/TVI/ CVBS

AHD/CVI/TVI/ CVBS

Chipset

Image Sensor

1/4" CMOS H62

1/2.7"Aptina AR0237

1/2.9"SONY IMX323

1/2.8"SONY IMX291

1/2.8"SONY IMX290

1/2.8"SONY IMX290

1/2.9"SONY IMX323

1/2.8"Aptina AR0330

1/3"OV4689

1/3"OV4689

1/3"Sony326

1/3"Sony326

DSP

V20E

V30E

V30E

NVP2441H

FH8550M

FH8550M

V30E

NVP2470

FH8538M

FH8538M

FH8538M

FH8538M

Image Resolution

720P/ 960H

1080P / 960H

1080P/960H

1080P/960H

1080P/960H

1080P / 960H

1080P/960H

3MP

4MP

4MP

4MP

4MP

Effective Pixels

1280*720

1920*1080

1920*1080

1920*1080

1920*1080

1920*1080

1920*1080

2048*1536

2560*1440

2560*1440

2560*1440

2560*1440

TV System

PAL/NTSC

Electronic Shutter

1/25s~1/50,000s , 1/30s~1/60,000s

S/N Ratio

50dB

Scanning System

Progressive Scan

Lens

Focus Length

3.6mm

3.6mm

3.6mm

3.6mm

3.6mm

2.8-8mm

2.8-8mm

3.6mm

3.6mm

2.8-8mm

3.6mm

2.8-8mm

Focus Control

Fixed

Fixed

Fixed

Fixed

Fixed

Auto

Auto

Fixed

Fixed

Auto

Fixed

Auto

Lens Type

Fixed

Fixed

Fixed

Fixed

Fixed

Motor Zoom

Auto Focus

Motor Zoom

Auto Focus

Fixed

Fixed

Motor Zoom

Auto Focus

Fixed

Motor Zoom

Auto Focus

Pixels

2M Pixels

2M Pixels

2M Pixels

2M Pixels

2M Pixels

2M Pixels

2M Pixels

3M Pixels

5M Pixels

5M Pixels

5M Pixels

5M Pixels

Night Vision

Infrared LED

5X23pcs OR 18PCS SMD LEDS

Infrared Distance

20M

IR Status

Under 10 Lux by CDS

IR Power On

CDS Auto Control

Camera Features

Day/Night

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

OSD Menu Language

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

Gain Control

AUTO

AUTO

AUTO

AUTO

AUTO

AUTO

AUTO

AUTO

AUTO

AUTO

AUTO

AUTO

Noise Reduction

DNR

3DNR

3DNR

3DNR

3DNR

3DNR

DNR

DNR

3DNR

3DNR

DNR

DNR

Picture Adjustment

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

WDR

DWDR

DWDR

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

OSD Support

Optional

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

UTC

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

YES

General

Housing

Metal, IP66

Bracket

YES

IR Cut Filter

YES

Operation Temperature

-10 ~ +50 RH95% Max

Storage Temperature

-20 ~ +60 RH95% Max

Power Source

DC12V±10%, 450mA

Dimension

80(H)*94(D) mm

Weight

450g
